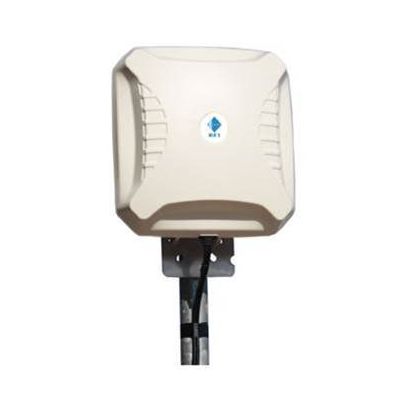

5G LTE MIMO Directional Panel Antenna - 698-3800MHz
In stock
SKU
LTE-XPOL-002-5G
High Gain MIMO Directional antenna suitable for 2G, 3G, 4G & 5G
Enquire Now
Enquire Now
The LTE-XPOL-002-5G antenna includes 3400 - 3800 MHz bandsand is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 698 – 960MHz, 1700 – 2170MHz, 2300 – 2700MHz & 3400 – 3800MHz.
The weatherproof housing is designed for mast or wall mounting and is supplied with 2 x 10 metres of low loss RG58 cable terminated with SMA male connectors.
| Nominal Gain dBi | 9 dBi @ 698-960MHz , 10 dBi @ 1710-2700MHz , 11 dBi @ 3400-3800MHz |
| Frequency MHz | 698-960MHz, 1710-2700 and 3400-3800MHz |
| Tunable Bandwidth | Full. No tuning required |
| VSWR | < 1.5:1 (over 95% of the band) |
| Polarisation | +/- 45 |
| Construction | Cream ABS |
| Dimensions mm | H 260, W 260 |
| Termination | 10m of RG58 fitted with SMA (M) connector per feed |
