Embedded Single Board Computers
Tekdis offers a wide selection of all form factors of embedded single board computers (SBCs) including CPU and IO options to suit various applications, ranging from the smallest PICO to ATX, built with IO connectors direct to the PCB. COM Express, SMARC and Q7 sized System on Modules (SOMs) are designed to plug into a carrier board via a high-density connector and the IO is then provided from the carrier board. PICMG is suitable for backplane-based designs in rack systems. We have the experience and know how to select the proper storage, and communication modules (LTE, WLAN) and can license/image with operating systems before shipping. Contact our team today to find out the best solution and pricing.
-

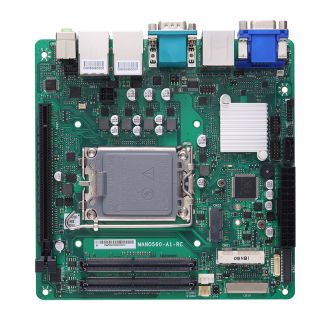

Axiomtek
MANO560 Mini-ITX Motherboard with 14/13th Gen- Intel® H610 chipset
- 4K-ready with Intel UHD graphics
- 12V DC, 0°C ~ 60°C
-

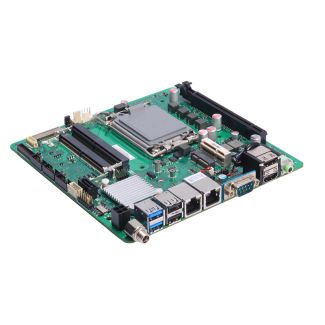

Axiomtek
MANO561 Thin Mini-ITX Motherboard with 14/13th Gen- Intel® H610 chipset
- Thin profile for slim PCs
- 12V DC, 0°C ~ 60°C
-

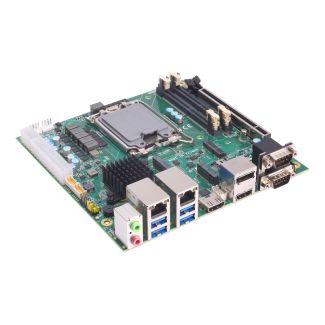

Axiomtek
MANO566 Mini-ITX Motherboard with 14th/13th Gen- Intel® Q670E/R680E/H610E chipset
- Dual DDR4 SO-DIMM, up to 64GB
- 24+4-pin ATX power, 0°C ~ 60°C
-

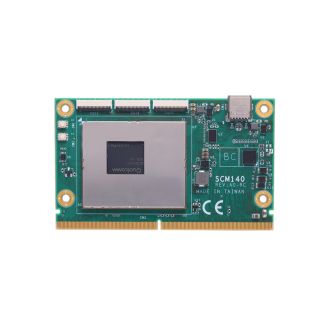

Axiomtek
SCM140 RISC Embedded SMARC v2.1 SoM with Qualcomm QCS6490- Qualcomm® QCS6490 Octa-core CPU
- Industrial-grade control module
- 3V ~ 5.25V, -25°C ~ 75°C
-

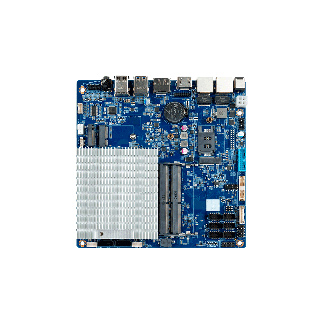

Giada Technology Inc.
IB4-271 Long Life Cycle Thin Mini-ITX Motherboard- Intel Celeron J6412 CPU & SoC chipset
- Supports 4K display via HDMI
- 12V ~ 24V DC, 0°C ~ 60°C
-

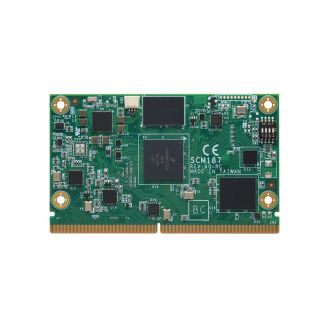

Axiomtek
SCM187 RISC Embedded SMARC v2.1 SoM Quad Core 1.6 GHz SoC, 4GB RAM 8GB eMMC- NXP i.MX 8M Mini Quad A53 Core CPU
- Dual CANBus, GbE LVDS
- 5V ± 5%, -40°C ~ 85°C
-
Axiomtek
IMB760 EATX Motherboard Xeon scalable 4 PCIe x16, 2 PCIe x8, VGA, NVMe, and IPMI- Dual gen3 Intel Xeon Scalable CPUs
- 16 288-pin DDR4-3200 RDIMM
- 10°C ~ 35°C operating temperature
-

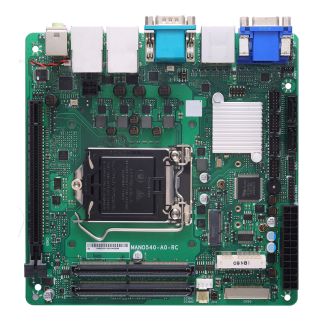

Axiomtek
MANO540 Mini-ITX SBC 10th Gen i9/i7/i5/i3- 10th Gen Intel® i9/i7/i5/i3 CPU
- Small form factor of 17 x 17 cm
- 12V ATX power, 0°C ~ 60°C
-

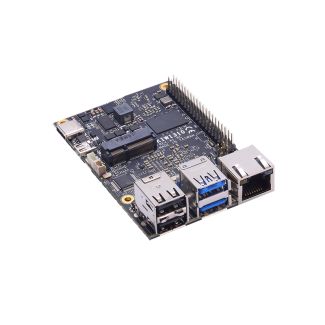

Axiomtek
KIWI310 1.8" SBC Celeron N3350- Intel Celeron N3350 CPU, SoC chipset
- On-board LPDDR4, up to 8GB
- 9/12/15/20V DC, 0°C ~ 60°C
-
Axiomtek
PICO317 Pico-ITX SBC Atom x5-E3940- Intel Atom x5-E3940 CPU onboard
- HDMI, LVDS, GbE LAN and Audio
- 5V DC, -40°C ~ 70°C
-
Axiomtek

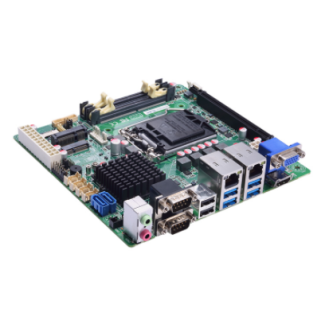

MANO522 Mini-ITX SBC 9th/8th Gen i7/i5/i3- Intel H310 chipset
- High computing power & compact
- 24+4 pin ATX power, 0°C ~ 60°C
-
Axiomtek

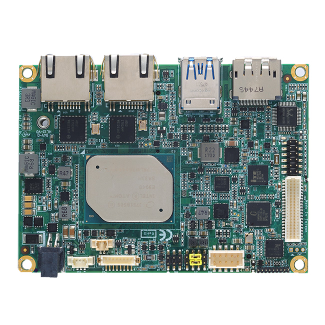

PICO319 Pico-ITX SBC Atom, DisplayPort, LVDS, 2 GbE LAN- Intel Atom x5-E3940 processor
- DP, LVDS, 2x GbE LAN, 4x USB, Audio
- 12V DC, -40°C ~ 70°C
-
Axiomtek

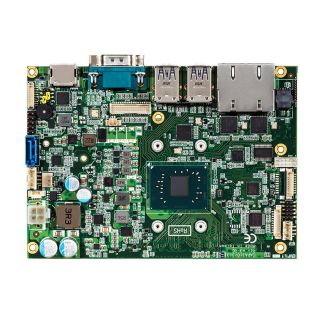

CAPA313 3.5” Embedded SBC Pentium/Celeron- PentiumN4200 / CeleronN3350 & SoC
- LVDS, HDMI, 2 GbE LANs, 6xUSB, Audio
- 12V~24V DC, -20°C ~ 70°C
-

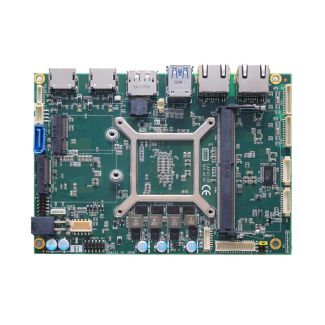

Axiomtek
CAPA13R 3.5” Embedded SBC with AMD Ryzen Embedded- AMD Ryzen Embedded V1807B, V1605B
- DisplayPort, 2 HDMI, LVDS, 4 GbE LAN
- 12V DC, -20°C ~ 60°C
-

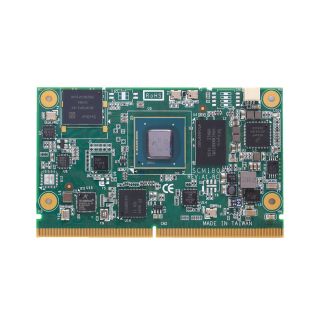

Axiomtek
SCM180 Ultra Small SMARC v2.0 SOM i.MX 8M Multi-Core CPU- SMARC SoM & i.MX8M Quad/Dual SoC
- 8GB eMMC, CAN, MIPI CSI/DSI, HDMI
- 0°C ~ 85°C operating temperature
-

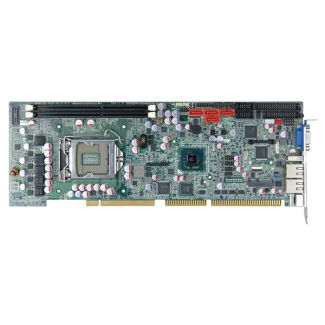

IEI Integration Corp.
WSB-H610 Full-size PICMG i7/i5/i3/Pentium/Celeron- H61 chipset & i7/i5/i3/Pentium/Celeron
- Dual PCIe, GbE & LAN1 + ASF 2.0
- 5V, 12V, Vcore 12V, 5VSB, -10°C ~ 60°C
-
IEI Integration Corp.

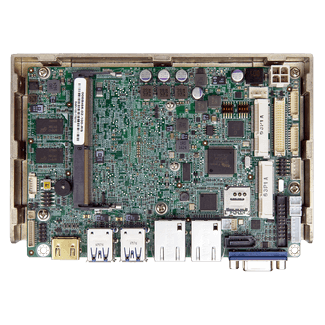

WAFER-ULT4 3.5” SBC 7th Gen i7/i5/i3- Intel 7th Gen ULT processor
- Triple display with VGA/iDP, HDMI, LVDS
- 12V DC, -20°C ~ 60°C
-
IEI Integration Corp.
WAFER-ULT3 3.5” SBC 6th Gen i7/i5/i3/Celeron- Intel 6th Gen ULT processor
- Triple display with VGA/iDP, HDMI, LVDS
- 12V DC, -20°C ~ 60°C
-

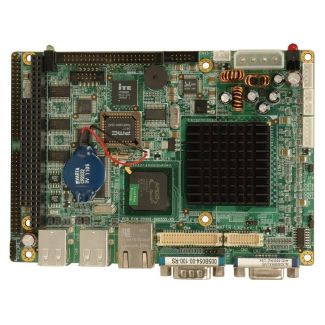

IEI Integration Corp.

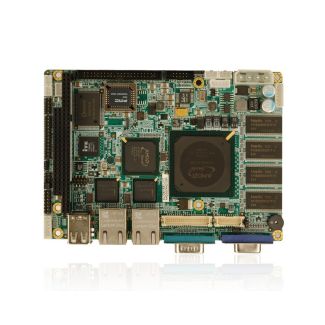

WAFER-LX2-800 3.5” SBC AMD Geode LX 800 Processor- AMD Geode LX 800 CPU
- 4 USB 2.0, 6 internal RS-232 & more
- 5V, 0°C ~ 60°C
-
IEI Integration Corp.
WAFER-LX-800 3.5” SBC with on-board AMD Geode LX 800 Processor- AMD Geode LX800, RoHS compliant
- 2 SATA, IDE, CF II, dual LAN, 4 USB
- 5V, 0°C ~ 60°C
-

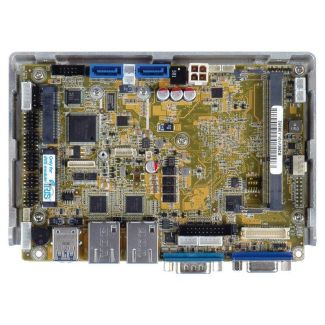

IEI Integration Corp.
WAFER-KBN-i1 3.5” SBC supports AMD Embedded G-Series SoC- 3.5” form factor with AMD G-Series SoC
- Support IPMI 2.0 with iRIS-1010 module
- 12V AT/ATX, 0°C ~ 60°C
-

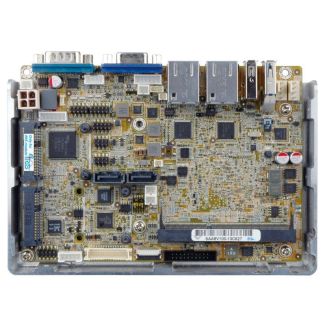

IEI Integration Corp.
WAFER-BT-i1 3.5” SBC Atom/Celeron on-board SoC- 1333/1066 MHz 1.35V DDR3L SDRAM
- VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0
- 12V DC AT/ATX, -20°C ~ 60°C
-
IEI Integration Corp.

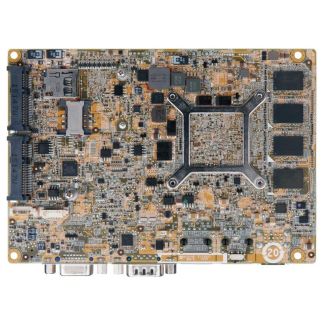

WAFER-BT-E38001W2 3.5” SBC Intel 22nm Atom SoC- Intel Atom E3845, 2GB 1333MHz DDR3L
- USB 3.0, SATA 3Gb/s, PCIe Mini, mSATA
- 12V DC, -40°C ~ 85°C
-

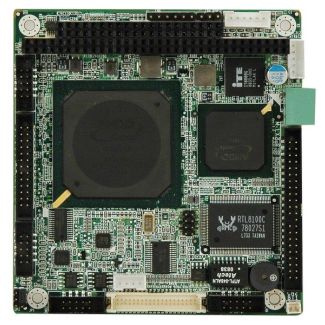

IEI Integration Corp.
PM-LX2 AMD Geode LX 800 CPU on-board PC/104 Module- AMD CS5536 Chipset
- Dual display with 1x VGA & 24-bit TTL
- 5V, 0°C ~ 60°C
Embedded Single Board Computers (SBCs)
Available in a range of form factors with CPU and IO options, embedded single board computers (SCBs) are useful for many applications. Options include PICO, ATX, COM Express, SMARC, Q7-sized systems on modules, and more.
Plug COM Express, SMARC, and Q7-sized systems on modules into a carrier board with the high-density connector and the board will provide the IO. Also, use the PCMG for backplane-based designs in rack systems.
Types of CPU
ARM-Based
Featuring fewer transistors, ARM-based CPUs are low-cost, consume less power, and create less heat. Because of these features, they are lightweight, portable, and great for battery-powered devices. Tekdis offers ARM-based modules and single-board computers that support both Linux and Android OS.
AMD/Nvidia
For complex graphic applications like gaming and digital signage, AMD offers high-performing GPU solutions. Nvidia is also a leading supplier of x86 CPUs and chipsets for robotics, advanced driver advisory systems, license plate recognition technology, and intelligent machines.
Atom/Celeron/Pentium
Intel Atom processors are ideal for small and compact computing needs, including smartphones, tablets, and other internet-enabled mobile devices. For next-level performance, Celeron and Pentium are great alternatives. They feature improved graphics but are still economical.
i3/i5/i7
i3 processors have two cores and perform specific functions for targeted applications. Core i5 processors have four to six cores and are mid-tier processors. Core i7 has as many as eight cores and features the highest specs. The higher the number of cores, the higher the clock speed, which improves overall performance. i5 and i7 are used for more extensive processing, decoding, and graphics performance. While i3 and i5 require a Windows IOT Value license, i7 requires a high-end license.
Xeon
Xeon processors are some of the highest quality in the industry. They have the most cores and the highest clock speeds as a result. This Intel brand of x86 microprocessor supports error-checking and correcting memory, perfect for non-consumer workstations, servers, and embedded applications.
Brands Used for Embedded PCS/Computers
Tekdis offers embedded computing boards from two manufacturers: Axiomtek and IEI Technology. These two manufacturers are some of the most respected in Taiwan.
Axiomtek
Axiomtek was developed in 1990. Today, their innovative designs are recognised all over the world. For reliable, state-of-the-art computing solutions, there is no better supplier. They take great pride in their products and it shows. As the leading designer and manufacturer of industrial computers and embedded field, they offer a wide range of solutions, including:
- Embedded board
- System on module
- Single board computer
- Embedded system
- Industrial barebone
- Network appliance
- Touch panel computer
- Human-machine interface
- Medical PC
- Industrial network
- Digital signage
IEI Technology
Ideal for computer-based applications, IEI technology works in alliance with Intel, Microsoft, and Amazon to offer a variety of devices, systems, applications, and more to the industrial computing industry. They strive to make advanced technology convenient and easy to use for all. IEI Technology products can be used for computer-based applications such as:
- Factory automation
- Computer telephony integration
- Networking appliances
- Security
- Systems
It is also popular in fields like:
- Artificial intelligence
- The internet of things
- National defense
- Emergency services
- Transportation
- Communication base stations
- Medical instruments.
Features of Embedded PCS/Computers
Fanless
In an industrial setting where excessive dust and dirt circulate through the air, fanless PCs are essential. Instead of using cooling fans, heat is conducted through the case or through the airflow over the machine. This protects the machine from dust, prolonging its life, and it also makes for silent operation. Tekdis has a growing offering of fanless options that are great for digital signage, industrial automation, mobile computing, and medical applications.
Android Powered
Android is a popular operating system for mobile phones and tablets. Android also features in the panel PC and embedded computing market as a secure and reliable operating system. Tekdis offers a range of embedded boards, embedded computers and panel PCs based on ARM based CPUs running Android OS.
