Brand: IEI Integration Corp.
Category: Single Board Computers

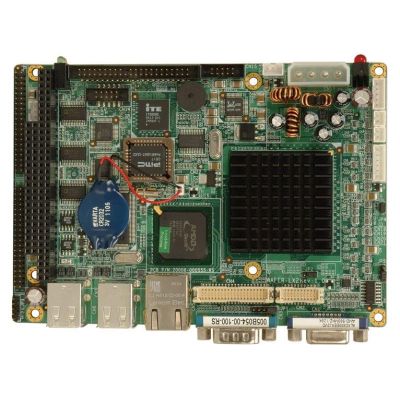

WAFER-LX2-800 3.5” SBC AMD Geode LX 800 Processor
In stock
SKU
WAFER-LX2-800-R12
3.5” SBC with on-board AMD Geode™ LX 800 Processor
End of Life
Enquire Now
Enquire Now
3.5” SBC with on-board AMD Geode™ LX 800 Processor
· 3.5"" form factor with AMD Geode™ LX 800 CPU
· One 333/400 MHz DDR SO-DIMM socket supports up to 1 GB memory
· VGA, 24-bit TTL, 18-bit LVDS display interfaces
· Seven RS-232 and one RS-232/422/485
· IEI One Key Recovery solution allows you to create rapid OS backup and recovery
| Spec Item | Description |
|---|---|
| CPU Cooler | |
| CPU Cooler | N/A |
| Display | |
| Display | VGA integrated in AMD Geode™ LX 800 24-bit TTL 18-bit single-channel LVDS |
| Environment | |
| Humidity | 5% ~ 95%, non-condensing |
| Operating Temperature | 0°C ~ 60°C |
| Expansion Slots | |
| Expansion Slots | 1 x PC/104 |
| I/O Interface | |
| Audio | Realtek ALC203 with AC`97 codec |
| Digital I/O | 1 x 8-bit digital I/O (2x5 pin) |
| Ethernet | LAN: 10/100Mbps RTL8100C Ethernet Controller |
| I/O Interface | |
| I/O Interface | 4 x USB 2.0 |
| 6 x Internal RS-232 | |
| 1 x RS-232 | |
| 1 x Internal RS-232/422/485 | |
| Power | |
| Power consumption | 5V@1.33A (AMD Geode™ LX 800 with one 1GB 400MHz DDR memory) |
| Storage | |
| Storage | 1 x CF Type II 1 x IDE (2x22 pin, P=2.0) |
| System | |
| Chipset | AMD CS5536 |
| CPU | AMD Geode™ LX 800 (500MHz) |
| CPU Socket | On Board |
| Memory Max. | One 200-pin 400/333MHz DDR SDRAM SODIMM slot support up to 1GB |
| Watchdog Timer | |
| Watchdog Timer | Software programmable supports 1~255 sec. system reset |
