Brand: IEI Integration Corp.
Category: Single Board Computers

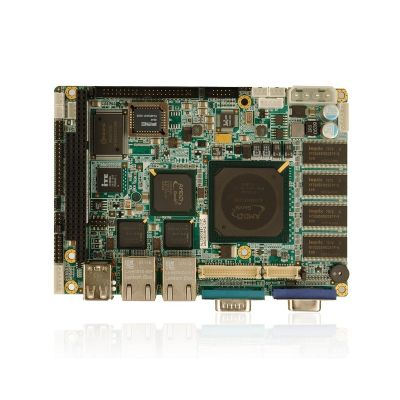

WAFER-LX-800 3.5” SBC with on-board AMD Geode LX 800 Processor
In stock
SKU
WAFER-LX-800-R12
3.5” SBC with on-board AMD Geode™ LX 800 Processor
End of Life
Enquire Now
Enquire Now
3.5” SBC with on-board AMD Geode™ LX 800 Processor
· 3.5” form factor embedded board with AMD Geode™ LX 800 processor and RoHS compliant
· 333/400 MHz DDR SDRAM SO-DIMM supports up to 1 GB
· Complete I/O support with two SATA, IDE, CF Type II, PC/104, dual LAN and four USB 2.0
· 24-bit TTL/18-bit single-channel LVDS
· Value embedded applications with low power and fanless design. Support Windows® XP/CE/XPe
· The best choice for thin client Windows® CE 5.0, XPe OS image with ICA, RDP and IE APs ready
· IEI One Key Recovery solution allows you to create rapid OS backup and recovery
| Spec Item | Description |
|---|---|
| CPU Cooler | |
| CPU Cooler | N/A |
| Display | |
| Display | VGA integrated in AMD Geode™ LX 800 24-bit TTL 18-bit single-channel LVDS |
| Environment | |
| Humidity | 5% ~ 95%, non-condensing |
| Operating Temperature | 0°C ~ 60°C |
| Expansion Slots | |
| Expansion Slots | 1 x PC/104 |
| I/O Interface | |
| Audio | Realtek ALC203 with AC’97 Codec |
| Digital I/O | 1 x 8-bit digital I/O (2x5 pin) |
| Ethernet | Dual LAN: 10/100Mbps RTL8100C Ethernet Controller |
| I/O Interface | |
| I/O Interface | 2 x Internal USB 2.0 |
| 2 x USB 2.0 | |
| 1 x RS-232 | |
| 1 x LPT | |
| 1 x RS-422/485 | |
| 1 x Internal RS-232 | |
| Power | |
| Power consumption | 5V@1.53A (AMD LX800 with one 1GB 400MHz DDR memory) |
| Storage | |
| Storage | 1 x CF Type II 1 x IDE (2x22 pin, P=2.0) 2 x SATA 1.5Gb/s (RAID 0, 1 support) |
| System | |
| Chipset | AMD CS5536 |
| CPU | AMD Geode™ LX800 (500MHz) processor |
| CPU Socket | On Board |
| Memory Max. | One 200-pin 400/333MHz DDR SDRAM SODIMM slot support up to 1GB |
| Watchdog Timer | |
| Watchdog Timer | Software programmable supports 1~255 sec. system reset |
