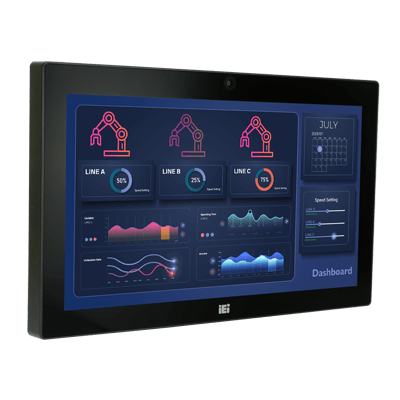

AFL3-W15C-ULT5 15.6" i5 8th Gen Panel PC
In stock
SKU
AFL3-W15C-ULT5
15.6" 1366x768 300cd i5 8th Gen CPU
End of Life
Enquire Now
Enquire Now
● W15.6” light industrial interactive panel PC
● 8th Generation Intel® Core™ i5 on-board Whiskey Lake-U processor
● Selectable AT/ATX power mode
● Built-in speakers
● Support PoE PD IEEE803.2 af/at/bt (optional)
● IP64 compliant front panel
● Touch screen with anti-UV / anti-glare coating
● Support Auto Flow Control over RS-485
| Communication | |
| Bluetooth | Bluetooth V4.1 |
| Wireless | IEEE 802.11a/b/g/n/ac |
| Environment | |
| Humidity | 10% ~ 95% (non-condensing) |
| Operating Temperature | -20ºC ~ 50ºC (-4ºF ~ 122ºF) |
| Storage Temperature | -20°C ~ 60°C (-4ºF ~ 140ºF) |
| I/O Interface | |
| Audio | AMP 3W + 3W (internal speaker) |
| Audio Codec | ALC888S |
| Ethernet | LAN1 & LAN2: Intel® I211; LAN3: Intel® I219 |
| RAM | Two 260-pin 2400MHz dual-channel DDR4 SO-DIMMs supporting up to 32 GB |
| LCD | |
| Backlight MTBF | 50000 (LED backlight) |
| Brightness (cd/m2) | 300 |
| Contrast Ratio | 500:1 |
| LCD Color | 16.7M |
| Resolution | 1366 X 768 (16:9) |
| Size | 15.6” |
| Viewing Angle (H-V) | 170º / 160º |
| Power | |
| Power Requirement | 12V, 8A |
| System | |
| Cooling method / System Fan | Fanless |
| CPU | Intel® Core™ i5-8365UE 1.6 GHz (up to 4.1GHz, Quad-core, 6MB cache, TDP=15W) |
| Storage | 1 x M.2 M-key 2242/60/80 PCIe 3.0 x4 (PCIe/SATA Signal) 1 x 2.5” SATA 3Gb/s HDD bay |
| Touch | |
| Touch Controller | EXC3160 |
| Touch Screen | PCAP with USB interface (anti-UV/AG coating) |
| Weight | |
| Weight | 4.5kg/6.5kg |
| I/O Interface | |
| I/O Interface | 1 x AT/ATX Switch |
| 1 x Clear CMOS | |
| 1 x HDMI | |
| 3 x LAN(GbE) | |
| 1 x Power In | |
| 1 x Power Switch | |
| 1 x Reset Button | |
| 1 x RS-232 | |
| 1 x RS-422/485(RS-232/422/485) | |
| 4 x USB 3.2 Gen2 | |
