Brand: Laird Connectivity

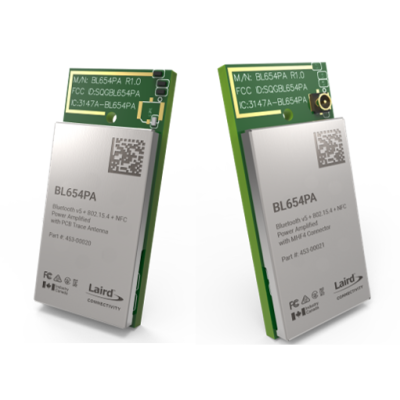

BL654PA Series BT v5 Low Energy (BLE) + NFC
In stock
SKU
BL654PA
Bluetooth v5 Modules with Power Amplifier
Enquire Now
Enquire Now
Building on Laird Connectivity’s expertise with Nordic from the BL654 series comes the most powerful yet - the BL654PA series! It provides OEMs with the maximum design flexibility and performance. A complete multi-protocol embedded wireless offering with exceptional processing capability, all with extended PA / LNA support for even greater range.
Powered by Nordic’s nRF52840 silicon, the small form factor BL654PA modules and DVKs provide for a secure, robust BLE and Cortex-M4F CPU for any OEM’s product design. The BL654 provides you with maximum development flexibility with programming options for a simple, intuitive AT Command Set, as well as Laird Connectivity’s own smartBASIC environment.
Antenna Options - PCB trace antenna or IPEX MHF4 connector
Bluetooth Version - 5.0
Certifications - CC / IC / RCM / KCC / Bluetooth SIG
Chipset - Nordic nRF52840
Chipset (MCU) - Cortex-M4F
Logical Interfaces - 46 GPIOs to support 2x UART, 8x ADC, 2x I2C, 4x SPI, 1x QPSI, 2x PDM, 2x I2S, NFC
Power Consumption (Tx) - 102.2 mA (@ +18 dBm)
Programming Options - smartBASIC programming language, AT Command Set
Receive Sensitivity - -98.5 dBm to -107 dBm
Transmit Power - +18 dBm (maximum), configurable down to -26 dBm. (+14 dBm in LE CODED PHY mode)
