Brand: Cincoze

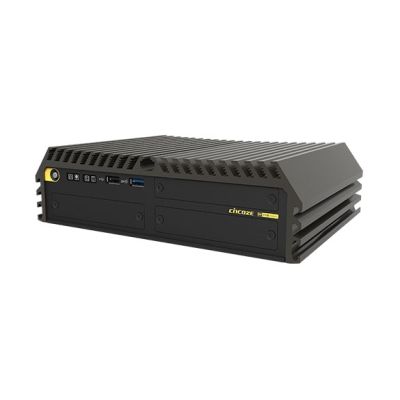

DV-1100 13/12th Gen High Performance Rugged Embedded Computer

In stock

SKU

DV-1100-R10

13/12th Gen. Intel Core Series High Performance and Rugged Embedded Computer

Key Features:

Intel® 13/12th Gen. Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
1x M.2 Key M Type 2280 Socket for PCIe Gen 4x4 NVMe Storage
1x M.2 Key E Type 2230 Socket for Wireless/Intel CNVi Module Expansion
1x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion
1x M.2 Key B Type 2242 Socket for Storage/Add-on Card Expansion
Optional CMI & CFM Modules for I/O Expansion & Power Ignition Sensing Function
Wide operating temperature -40°C to 70°C
Safety Standard: UL, cUL, CB, IEC, EN 62368-1

Enquire Now

Name

Phone

Postcode

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

The DV-1100 is a compact, high-performance, embedded edge computer that supports 13th/12th generation Intel® processors. Its balance between high-performance computing needs and cost-effectiveness enables enterprises to quickly analyze and process edge data for better decision-making and improved production efficiency and accuracy. The DV-1100 is ideal for smart manufacturing, machine vision, railway computing, and space-constrained applications where stability and reliability are paramount.

Balancing Performance and Cost

The DV-1100 has a compact body and supports a 13th/12th generation Intel® Core™ processor. It provides sufficient computing performance for multitasking and diverse applications while balancing performance and cost.

Compact Size

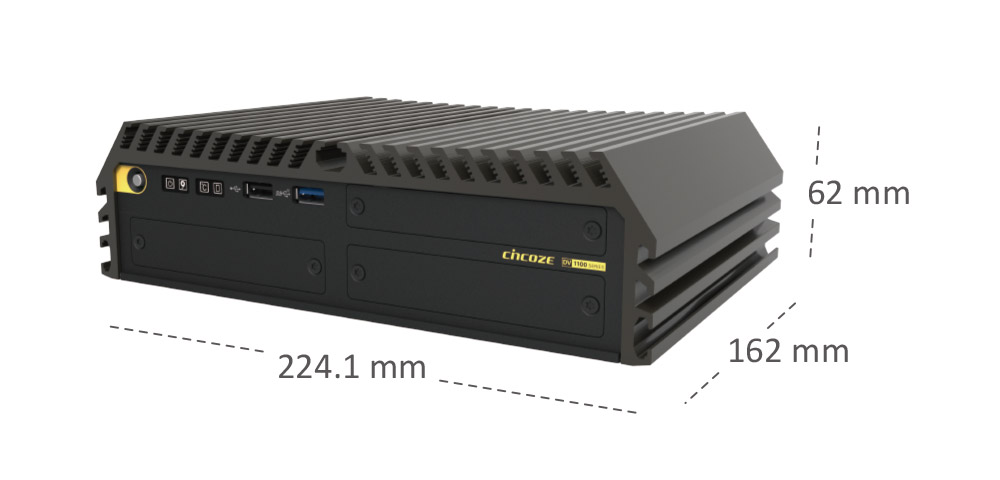

The DV-1100 measures only 224.1 x 162 x 62mm, making it easy to install anywhere, including in space-constrained applications.

Stunning Transfer and Access Speeds

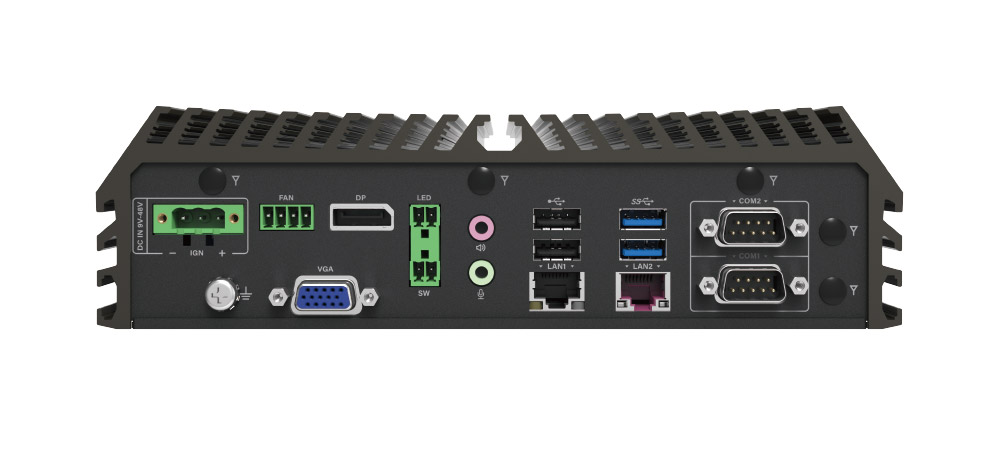

The DV-1100 has high-speed I/O interfaces, including 2.5G LAN and 10Gbps USB 3.2 Gen2x1. Storage support includes 2.5″ HDD/SSD and high-speed NVMe SSD.

Excellent Extension Design

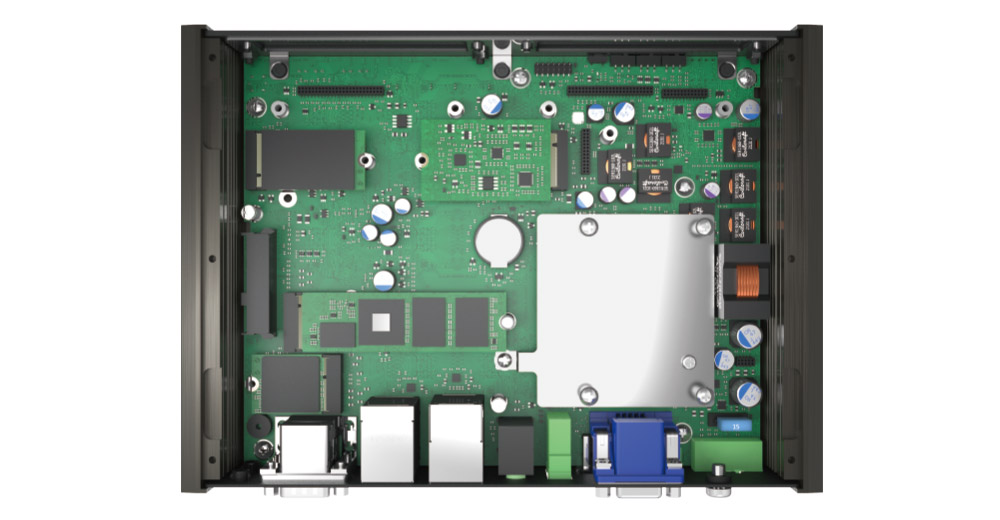

The DV-1100 has built-in M.2 Key B, M.2 Key E, and M.2 Key M slots for flexible wireless (5G, Wi-Fi, GNSS) and storage selection according to application requirements.

Various Industry Certifications

The DV-1100's rugged design meets various industrial-grade and industrial certifications, such as EMC standards in industrial environments (EN 61000-6-2/4), US military shock vibration standards (MIL-STD-810H), railway computing EN50155 (EN 50121-3-2 only), and more.

Specifications

Model Name		DV-1100
System	Processor	13th Generation Intel® Raptor Lake-S Series CPU: • Intel® Core™ i9-13900E 24 Cores Up to 5.2 GHz, TDP 65W • Intel® Core™ i7-13700E 16 Cores Up to 5.1 GHz, TDP 65W • Intel® Core™ i5-13500E 14 Cores Up to 4.6 GHz, TDP 65W • Intel® Core™ i5-13400E 10 Cores Up to 4.6 GHz, TDP 65W • Intel® Core™ i3-13100E 4 Cores Up to 4.4 GHz, TDP 60W • Intel® Core™ i9-13900TE 24 Cores Up to 5.0 GHz, TDP 35W • Intel® Core™ i7-13700TE 16 Cores Up to 4.8 GHz, TDP 35W • Intel® Core™ i5-13500TE 14 Cores Up to 4.5 GHz, TDP 35W • Intel® Core™ i3-13100TE 4 Cores Up to 4.1 GHz, TDP 35W 12th Generation Intel® Alder Lake-S Series CPU: • Intel® Core™ i9-12900E 16 Cores Up to 5.0 GHz, TDP 65W • Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W • Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W • Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W • Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W • Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W • Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W • Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W • Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W • Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W • Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W • Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W
	Chipset	• Intel H610E Chipset
	Memory	• 1x DDR5 4800MHz SO-DIMM Socket Supports Un-buffered and non-ECC Type, Up to 32GB
	BIOS	• AMI BIOS
Graphics	Graphics Engine	• Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5 • Integrated Intel® UHD Graphics 730: Core™ i3 • Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
	Maximum Display Output	• Supports Triple Independent Display
	DP	• 1x DisplayPort Connector: 3840 x 2160 @60Hz
	VGA	• 1x VGA Connector: 1920 x 1200 @60Hz
	CMI Display	• 1x CMI Interface for Optional CMI-DP/CMI-HDMI Module Expansion
Audio	Audio Codec	• Realtek® ALC888, High Definition Audio
	Line-out	• 1 x Line-out, Phone Jack 3.5mm
	Mic-in	• 1 x Mic-in, Phone Jack 3.5mm
I/O	LAN	• 1x 2.5GbE LAN, RJ45 - Intel® I225 • 1x 1GbE LAN, RJ45 - Intel® I219
	COM	• 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
	USB	• 1x 10Gbps USB3.2 Gen 2x1, Type A • 2x 5Gbps USB3.2 Gen 1x1, Type A • 3x 480Mbps USB2.0, Type A
Storage	SSD/HDD	• 1x 2.5" SATA HDD/SSD Bay (SATA 3.0)
Storage	M.2 SSD	• 1x M.2 SSD Shared by M.2 Key M Type 2280 Socket, Support PCIe Gen 4x4 NVMe SSD or SATA 3.0 SSD • 2x M.2 SSD Shared by M.2 Key B Socket, Support PCIe Gen 3x2 NVMe SSD or SATA 3.0 SSD
Expansion	M.2 Key E Socket	• 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x2 / USB2.0), Support Wireless/Intel CNVi Module Expansion
	M.2 Key B Socket	• 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / USB3.2 Gen2 x1 / USB2.0 / SATA), Support 5G/Storage/Add-on Card Expansion • 1x M.2 Key B Type 2242 Socket (PCIe Gen 3x2 / USB2.0 / SATA ), Support Storage/Add-on Card Expansion
	SIM Socket	• 1x Front Accessible Dual Nano SIM Socket
	CMI (Combined Multiple I/O) Interface	• 1x CMI Interface for optional CMI-Display Module Expansion • 2x CMI Interface for optional CMI-COM/DIO Module Expansion
	CFM (Control Function Module) Interface	• 1x CFM IGN Interface for optional CFM-IGN Module Expansion
Other Function	External FAN Connector	• 1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
	Clear CMOS Switch	• 1x Clear CMOS Switch
	Reset Button	• 1x Reset Button
	Instant Reboot	• Support 0.2sec Instant Reboot Technology
	Watchdog Timer	• Software Programmable Supports 256 Levels System Reset
	Antenna Hole	• 5x Antenna Holes
Power	Power Button	• 1 x ATX Power On/Off Button
	Power Mode Switch	• 1 x AT/ATX Mode Switch
	Power Input	• 9 - 48VDC, 3-pin Terminal Block
	Remote Power On/Off	• 1 x Remote Power On/Off, 2-pin Terminal Block
	Remote Power LED	• 1 x Remote Power LED, 2-pin Terminal Block
	Max. Power Consumption	• 35W CPU - OS Idle Mode: 87.34 W - Full Loading: 204.46 W • 65W CPU - OS Idle Mode: 91.18 W - Full Loading: 307.92 W
	Inrush Current (Peak)	• 35W CPU: 4.362 A@24V • 65W CPU: 4.516 A@24V
Physical	Dimension ( W x D x H )	• 224.1 x 162 x 62 mm
	Weight Information	• 2.52 KG
	Mechanical Construction	• Extruded Aluminum with Heavy Duty Metal
	Mounting	• Wall / DIN-RAIL / VESA Mount
	Physical Design	• Fanless Design • Cableess Design • Jumper-less Design • Unibody Design
Reliability & Protection	Reverse Power Input Protection	• Yes
	Over Voltage Protection	• Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover
	Over Current Protection	• 15A
	CMOS Battery Backup	• SuperCap Integrated for CMOS Battery Maintenance-free Operation
	MTBF	• 413,236 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3
Operating System	Windows	• Windows®11, Windows®10
Operating System	Linux	• Ubuntu 22.04
Environment	Operating Temperature	• 35W TDP Processor: -40°C to 70°C • 65W TDP Processor: -40°C to 55°C (With External Fan Kit) * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
	Storage Temperature	• -40°C to 70°C
	Relative Humidity	• 95% RH @ 70°C (Non-condensing)
	Shock	• MIL-STD-810H
	Vibration	• MIL-STD-810H
	EMC	• CE, UKCA, FCC, ICES-003 Class A • EN IEC 61000-6-4 / EN IEC 61000-6-2 (24VDC Input Only) • EN 50155 (EN 50121-3-2 Only) • E-mark
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN 61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded cable.) • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
	Safety	UL, cUL, CB, IEC, EN 62368-1

Downloads

Datasheet

Ordering Information

Model No.	Description
DV-1100-R10	13/12th Gen. Intel® Core™ Series High Performance and Basic Function Rugged Embedded Computer
