DX-1200 13/12th Gen Compact Rugged Embedded Computer
13/12th Gen. Intel Core Series High Performance and Compact Rugged Embedded Computer
Key Features:
- Intel® 13/12th Gen Raptor Lake-S/Alder Lake-S Core i9/i7/i5/i3 Processors
- 2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHZ, 64GB
- Quad Independent Display (HDMI / DP / DVI-I)
- 1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module
- CMI Technology for Optional I/O Module Expansions
- CFM Technology for Power Ignition Sensing & PoE Function
- Wide Operating Temperature -40°C to 70°C
- Safety Standard: UL, cUL, CB, IEC, EN 62368-1
T

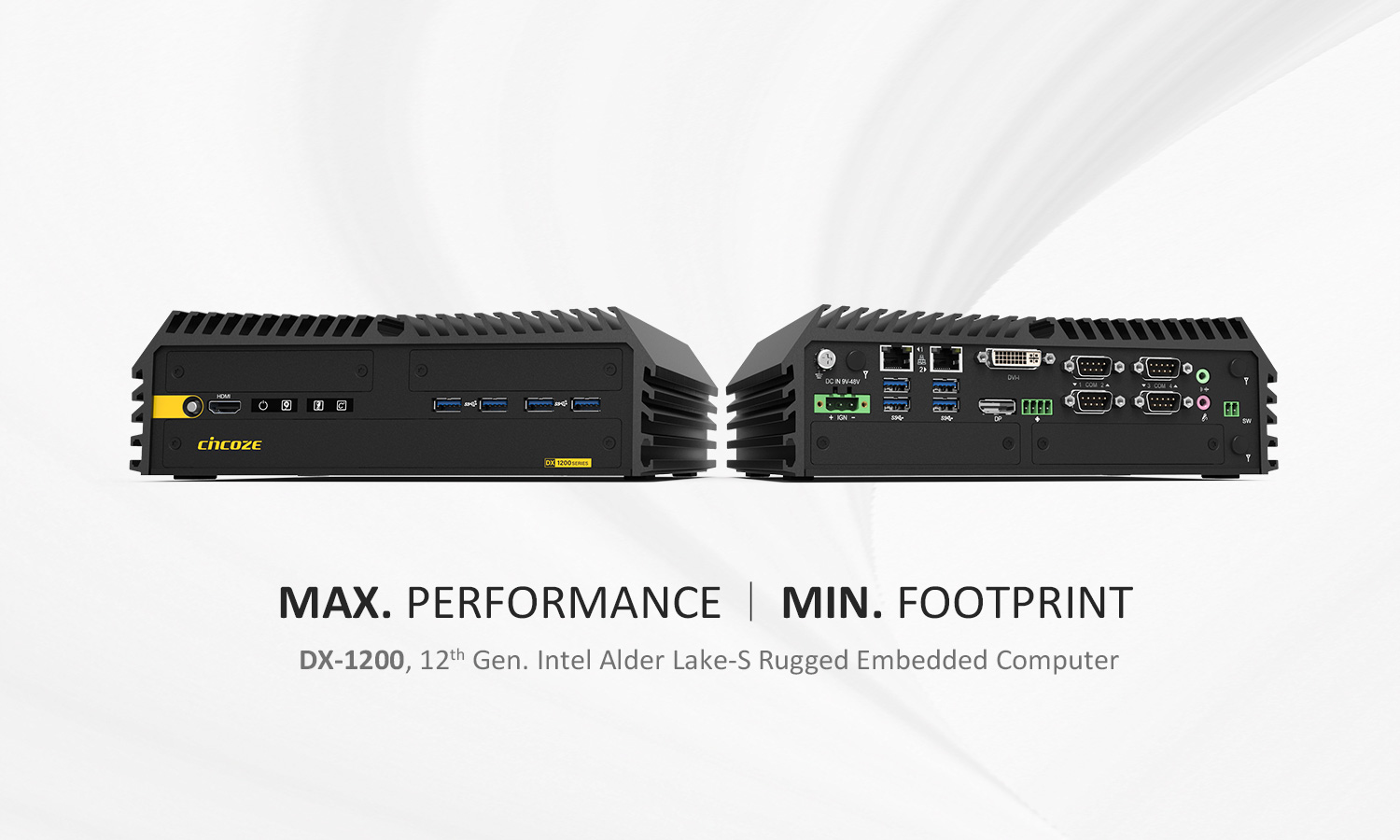

he DX-1200 is a fanless embedded computer that packs extreme performance into a rugged, compact chassis, making it the ideal choice for smart manufacturing, machine vision, and edge AI applications. 13/12th gen Intel® Core™ (Raptor Lake-S / Alder Lake-S) processor (TDP up to 65W) and DDR5 4800 MHz memory provide high-speed computing performance, while additional functions, including rich native I/O and modular expansion design, meet the requirements for a wide range of applications.
Rapid Processing and Inference
The DX-1200 supports 13/12th gen Intel® Core™ i9/i7/i5/i3 (Raptor Lake-S/Alder Lake-S) processors based on the Intel 7 process, with up to 24 cores (8P + 16E) and 32 threads, delivering more than 1.35x the speed of Comet Lake-S platform. The Intel® Xe architecture of the UHD 770 graphics chip boosts GPU image classification inference performance to 2.8× the speed of Comet Lake-S, providing the processing performance needed for AI and edge computing.
High-speed, Safe Memory
Two DDR5 SO-DIMM slots support up to 64GB of 4800MHz memory and include ECC (Error Correction Code) technology, giving the extra stability and reliability needed for industrial automation applications.
Rich and Diverse Expandability
To cater to the widest range of industrial applications, the DX-1200 provides one M.2 Key E slot and two Mini PCIe slots for the addition of WiFi, GNSS, 4G, and Bluetooth. The Mini PCIe slots also support I/O expansion cards, frame grabber cards, and more, to meet different application requirements.
High-speed, Reliable Data Transmission

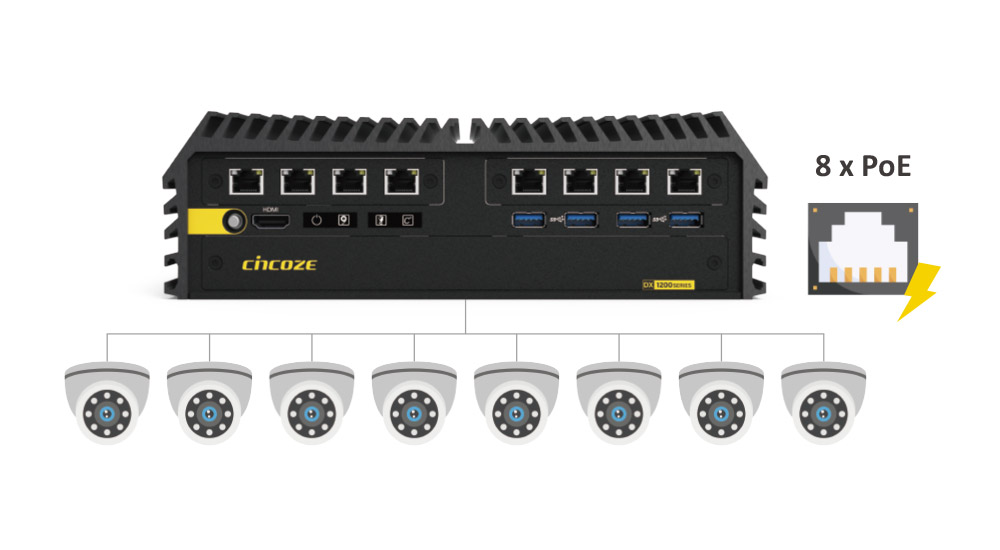

To improve the transfer rate of videos or large files, the DX-1200 supports up to four high-speed 10Gbps LAN ports. And for application environments that require multiple network connections, the DX-1200 supports up to 8× PoE, providing data and power through the same cable to reduce the difficulty of wiring.
Robust and Reliable
The DX-1200 is built tough, reflected in its industrial-grade protection design and industry certifications in different fields. In addition to features such as wide temperature (-40 - 70°C), wide voltage input (9 - 48 VDC), overvoltage, overcurrent, and ESD protection, it also complies with the US military shock vibration standard MIL-STD-810G. Product safety and reliability are further ensured with internationally recognized UL 62368-1 safety certification. For more secure railway computing, it also passes the EMC EN 50121-3-2 standard in EN 50155 and the EN 45545-2 fire protection standard.
|
Model Name |
DX-1200 |
|
|---|---|---|
|
System |
Processor |
13th Generation Intel® Raptor Lake-S Series CPU: 12th Generation Intel® Alder Lake-S Series CPU: |
|
Chipset |
Intel R680E Chipset |
|
|
Memory |
2x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64GB |
|
|
BIOS |
AMI BIOS |
|
|
Graphics |
Graphics Engine |
Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5 Integrated Intel® UHD Graphics 730: Core™ i3 Integrated Intel® UHD Graphics 710: Pentium®/Celeron® |
|
Maximum Display Output |
Supports Quad Independent Display |
|
|
DVI |
1x DVI-I Connector - VGA: 1920 x 1080 @ 60 Hz - DVI-D: 1920 x 1200 @ 60 Hz |
|
|
DP |
1x DP Connector: 4096 x 2304 @ 60Hz * Verified maximum resolution: 3840 x 2160 @ 60Hz |
|
|
HDMI |
1 x HDMI Connector (3840x2160@30Hz) |
|
|
Audio |
Audio Codec |
Realtek® ALC888, High Definition Audio |
|
Line-out |
1x Line-out, Phone Jack 3.5mm |
|
|
Mic-in |
1x Mic-in, Phone Jack 3.5mm |
|
|
I/O |
LAN |
2x 1GbE LAN, RJ45(Supports Wake on LAN, PXE) - GbE1: Intel® I219 - GbE2: Intel® I210 |
|
COM |
4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 |
|
|
USB |
4 x USB 3.2 Gen2x1 (10Gbps), Type A 4 x USB 3.2 Gen1x1 (5Gbps), Type A |
|
|
Storage |
SSD/HDD |
2x 2.5" SATA HDD/SSD Bay (SATA 3.0) |
|
mSATA |
2x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket ) |
|
|
RAID |
Support RAID 0/1/5/10 |
|
|
Expansion |
Mini PCI Express |
2x Full-size Mini-PCIe Socket |
|
M.2 E Key Socket |
1x M.2 Key E Type 2230 Socket, Support Intel CNVi Module |
|
|
SIM Socket |
1x SIM Socket |
|
|
CMI (Combined Multiple I/O) Interface |
2x High Speed CMI Interface for optional CMI Module Expansion 1x Low Speed CMI Interface for optional CMI Module Expansion |
|
|
CFM (Control Function Module) Interface |
1x CFM IGN Interface for optional CFM-IGN Module Expansion |
|
|
Other Function |
External FAN Connector |
1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS) |
|
Clear CMOS Switch |
1x Clear CMOS Switch |
|
|
Reset Button |
1x Reset Button |
|
|
Instant Reboot |
Support 0.2sec Instant Reboot Technology |
|
|
Watchdog Timer |
Software Programmable Supports 256 Levels System Reset |
|
|
Power |
Power Button |
1 x ATX Power On/Off Button |
|
Power Mode Switch |
1 x AT/ATX Mode Switch |
|
|
Power Input |
9 - 48VDC, 3-pin Terminal Block |
|
|
Remote Power On/Off |
1 x Remote Power On/Off, 2-pin Terminal Block |
|
|
Max. Power Consumption |
• 35W CPU - OS Idle Mode: 86.14 W - Full Loading: 201.17 W • 65W CPU - OS Idle Mode: 99.89 W - Full Loading: 274.80 W |
|
|
Inrush Current (Peak) |
• 35W CPU: 4.151 A@24V • 65W CPU: 4.360 A@24V |
|
|
Physical |
Dimension ( W x D x H ) |
242 x 173 x 75 mm |
|
Weight Information |
3.05 kg |
|
|
Mechanical Construction |
Extruded Aluminum with Heavy Duty Metal |
|
|
Mounting |
Wall / DIN-RAIL / VESA / Side Mount |
|
|
Physical Design |
• Fanless Design • Cableless Design • Jumper-less Design • Unibody Design |
|
|
Reliability & Protection |
Reverse Power Input Protection |
Yes |
|
Over Voltage Protection |
• Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover |
|
|
Over Current Protection |
15A |
|
|
CMOS Battery Backup |
SuperCap Integrated for CMOS Battery Maintenance-free Operation |
|
|
MTBF |
394,488 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 |
|
|
Operating System |
Windows |
Windows®11, Windows®10 |
|
Linux |
Ubuntu 22.04 |
|
|
Environment |
Operating Temperature |
• 35W TDP Processor: -40°C to 70°C • 65W TDP Processor: -40°C to 50°C (With External Fan Kit) - With extended temperature peripherals; Ambient with air flow - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
|
Storage Temperature |
-40°C to 85°C |
|
|
Relative Humidity |
95% RH @ 70°C (Non-condensing) |
|
|
Shock |
MIL-STD-810G |
|
|
Vibration |
MIL-STD-810G |
|
|
EMC |
• CE, UKCA, FCC, ICES-003 Class A • EN 50155 (EN 50121-3-2 Only) • E-Mark |
|
|
EMI |
• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A |
|
|
EMS |
• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz |
|
|
Safety |
UL, cUL, CB, IEC, EN 62368-1 |
|
|
Fire Protection |
EN 45545-2 |
|
|
Model No. |
Product Description |
|---|---|
|
DX-1200-R10 |
13/12th Gen. Intel® Core Series High Performance and Compact Rugged Embedded Computer |
