Brand: Giada Technology Inc.

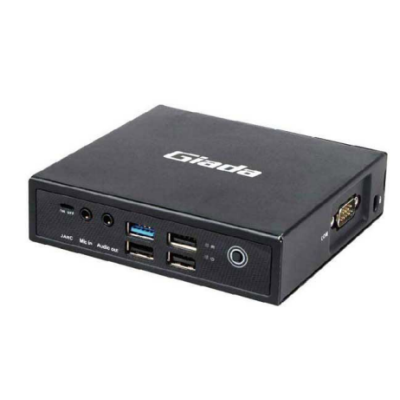

F202 Ultra Compact and Fanless Player
In stock
SKU
F202-1
Fanless compact PC, Atom x5-Z8350 (Cherry Trail) Processor
Enquire Now
Enquire Now
Fanless compact PC, Atom x5-Z8350 (Cherry Trail) Processor
· Intel Cherry Trail Processor
· Onboard 2GB/4GB DDR3L Memory
· 1 x HDMI, 1 x VGA
· eMMC Onboard 32GB/64GB, 1 x TF Card Reader
· 1 x USB3.0, 3 x USB2.0, 1 x RS232
· 1 x RJ45, 1 x Mini-PCIe for 3G/4G, 1 x SIM slot
| F202 | F202 | |
| Processor | CPU | Intel® Celeron N2807 |
| Frequency | 1.58 GHz (up to 2.16 GHz) | |
| BIOS | AMI Source Code | |
| Chipset | SOC | |
| Memory | Type | DDR3L-1600MHz |
| Socket | 2GB Onboard | |
| Max Size | 2GB | |
| Graphics | GPU | Intel® HD Graphics |
| Graphic Engine | DirectX11, OpenGL4.0 ,OpenCL 1.2 | |
| HDMI | 1 x HDMI(Max.2560 x 1600@24Hz) | |
| VGA | 1 x VGA(Max.2048 x 1536@60Hz) | |
| Network | Controller | Realtek RTL8111F Gigabit Ethernet |
| Interface | 1 x RJ45 | |
| I/O | USB | 1 x USB 3.0, 3 x USB 2.0 |
| Serial Port | 1 x RS232 | |
| Audio | 1 x MIC-IN, 1 x AUDIO-OUT | |
| Mini-PCIe | 1 x Fulll-size Mini-PCIe for 3G/4G | |
| SIM | 1 x SIM Slot | |
| WiFi+BT on Board | 1 x WiFi +BT Module Onboard | |
| Storage | EMMC | 32GB/64GB Onboard |
| Card Reader | 1 x TF Card Reader | |
| JAHC Tech | WatchDog Timer | 0~255 Second Time Out Support |
| Auto Power On | Power Activated Automatically Start | |
| RTC | Set Up Independently Every day, A Week as a Cycle | |
| Remote Control | By IR Controller for Power On | |
| Wake On Lan | Yes | |
| Operation System | Windows | Windows 8.1/10(64-bit) |
| Android | Not supported | |
| Linux | Supported | |
| Power | Power Type | DC-IN |
| Power Adapter | 12V/2A | |
| Mechanical | Dimensions (W × D × H) | 116.6mm x 107.4mm x 30mm(4.59"x4.23"x1.18") |
| Fanless | Yes | |
| Construction | Metal | |
| Mounting(Optional) | Desk/Wall Mounting and VESA Mounting Kit (JT NUC-JC530) | |
| Color | Black | |
| Environment | Operating Temperature | 0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow |
| Relative Humidity | 95%@40℃ (non-condensing) | |
| Certification | Certification | CE, FCC Class B, CCC |
