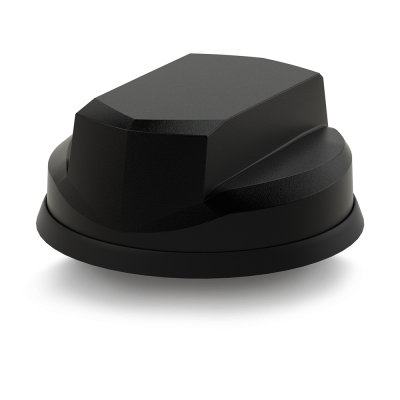

‘Great White’ 2×2 MiMo 4G/5G Vehicle Antenna
MiMo 4G/5G Dome Combination Antenna
Key Features:
- All-in-one vehicle router antenna
- Low Profile 2x2 4G/5G MiMo
- Up to 6x6 MiMo Dual Band WiFi 6E
- Optional GPS/GNSS Active Antenna 26dB LNA
- Upto 9 functions inside a low-profile housing
- Ground plane independent antenna solution
- Available with black or white radome, meeting IK10 for vandal resistance and IP69K
The L[G]M[X]M[X]-6-60[-24-58] range has been designed to provide 2×2 4G/5G MiMo performance from 617-960/1427-6000MHz in a robust low-profile package. The flexible platform allows the main elements to be combined with several other functions including GPS/GNSS and up to 6×6 MiMo WiFi 2.4/4.9-7.2GHz. The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant with UN ECE R118.03 and EN45545-2) and a halogen-free flame retardant radome the antenna is suitable for many environments and applications. The LGM variants have an integrated GPS/GNSS module supporting GPS, GLONASS, Galileo and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in-band interference. The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection.
|
ELECTRICAL DATA |
|
|---|---|
|
Pattern |
Omnidirectional |
|
Max Input Power(W) |
20 |
|
Frequency Range | Gain |
617 – 960MHz | 5dBi; 1710 – 3800MHz | 9dBi; 4900 – 6000MHz | 10dBi |
|
Cellular LTE Elements |
2 x 2 MIMO |
|
WIFI Elements |
6 x 6 MIMO; No; 2 x 2 MIMO; 4 x 4 MIMO; 3 x 3 MIMO |
|
UHF Elements |
No |
|
GPS DATA |
|
|
GPS Frequency Range |
1562-1612MHz |
|
LNA GAIN (dB) |
26 |
|
Number of GPS Elements |
1 Module; No |
|
MECHANICAL DATA |
|
|
Colour |
Black; White |
|
Height |
75 (mm) | 2.95 (in) |
|
Diameter |
180 (mm) | 7.09 (in) |
|
Operating Temperature |
-40°/ +80°C (-40.0°/ +176.0°F) |
|
CABLE DATA |
|
|
Cable Length – LTE |
min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) |
|
Cable length – GPS |
min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) |
|
Cable Length – WIFI |
min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) |
|
Cable Type (LTE) |
FR RG174 |
|
Cable Type (GPS) |
FR RG174 |
|
Cable Type (WIFI) |
FR RG174 |
|
Quantity of Cell Cable |
2 |
|
Quantity of GPS/GNSS Extension |
1 |
|
Quantity of WIFI Extension |
max: 6 |
|
TERMINATION DATA |
|
|
Connector (WIFI) |
Reverse Polarity SMA; SMA (f) |
|
Connector (GPS) |
SMA (m); FME (f) |
|
Connector (LTE) |
SMA (m) |
|
MOUNTING DATA |
|
|
Mounting Type Fixed |
Panel |
|
Mounting Type Temp |
Magnetic |
|
Mounting Methods |
Panel; Magnetic |
|
APPROVALS DATA |
|
|
IP Rating |
IP69K |
|
Cable Flammability |
EN45545-2 HL3; UN ECE R118; EN6722 |
|
TECHNOLOGY DATA |
|
|
Technology |
GPS; WIFI MIMO; 4G/5G; WIFI; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready; FirstNet; GNSS |
| SKU | Colour | Cellular | GPS | WIFI |
|---|---|---|---|---|
|
LG-IN2448 |
Black |
2 x 2 MIMO |
1 Module |
6 x 6 MIMO |
|
5m |
5m |
5m |
||
|
SMA (m) |
SMA (m) |
Reverse Polarity SMA |
||
|
Cables Fitted |
Cables Fitted |
Cables Fitted |
||
|
LG-IN2448-LC |
Black |
2 x 2 MIMO |
1 Module |
6 x 6 MIMO |
|
5m |
5m |
5m |
||
|
SMA (m) |
SMA (m) |
Reverse Polarity SMA |
||
|
Cables Loose |
Cables Loose |
Cables Loose |
||
|
LG-IN2448-W |
White |
2 x 2 MIMO |
1 Module |
6 x 6 MIMO |
|
5m |
5m |
5m |
||
|
SMA (m) |
SMA (m) |
Reverse Polarity SMA |
||
|
Cables Fitted |
Cables Fitted |
Cables Fitted |
||
|
LG-IN2448-W-LC |
White |
2 x 2 MIMO |
1 Module |
6 x 6 MIMO |
|
5m |
5m |
5m |
||
|
SMA (m) |
SMA (m) |
Reverse Polarity SMA |
||
|
Cables Loose |
Cables Loose |
Cables Loose |
||
|
LG-IN2456 |
Black |
2 x 2 MIMO |
1 Module |
No |
|
5m |
5m |
|||
|
SMA (m) |
SMA (m) |
|||
|
Cables Fitted |
Cables Fitted |
|||
|
LG-IN2456-LC |
Black |
2 x 2 MIMO |
1 Module |
No |
|
5m |
5m |
|||
|
SMA (m) |
SMA (m) |
|||
|
Cables Loose |
Cables Loose |
|||
|
LG-IN2456-W |
White |
2 x 2 MIMO |
1 Module |
No |
|
5m |
5m |
|||
|
SMA (m) |
SMA (m) |
|||
|
Cables Fitted |
Cables Fitted |
|||
|
LG-IN2456-W-LC |
White |
2 x 2 MIMO |
1 Module |
No |
|
5m |
5m |
|||
|
SMA (m) |
SMA (m) |
|||
|
Cables Loose |
Cables Loose |
|||
|
LG-IN2457 |
Black |
2 x 2 MIMO |
1 Module |
2 x 2 MIMO |
|
5m |
5m |
5m |
||
|
SMA (m) |
SMA (m) |
Reverse Polarity SMA |
||
|
Cables Fitted |
Cables Fitted |
Cables Fitted |
||
|
LG-IN2457-LC |
Black |
2 x 2 MIMO |
1 Module |
2 x 2 MIMO |
|
5m |
5m |
5m |
||
|
SMA (m) |
SMA (m) |
Reverse Polarity SMA |
||
|
Cables Loose |
Cables Loose |
Cables Loose |
||
|
LG-IN2457-W |
White |
2 x 2 MIMO |
1 Module |
2 x 2 MIMO |
|
5m |
5m |
5m |
||
|
SMA (m) |
SMA (m) |
Reverse Polarity SMA |
||
|
Cables Fitted |
Cables Fitted |
Cables Fitted |
||
|
LG-IN2457-W-LC |
White |
2 x 2 MIMO |
1 Module |
2 x 2 MIMO |
|
5m |
5m |
5m |
||
|
SMA (m) |
SMA (m) |
Reverse Polarity SMA |
||
|
Cables Loose |
Cables Loose |
Cables Loose |
||
|
LG-IN2458 |
Black |
2 x 2 MIMO |
1 Module |
4 x 4 MIMO |
|
5m |
5m |
5m |
||
|
SMA (m) |
SMA (m) |
Reverse Polarity SMA |
||
|
Cables Fitted |
Cables Fitted |
Cables Fitted |
||
|
LG-IN2458-W |
White |
2 x 2 MIMO |
1 Module |
4 x 4 MIMO |
|
5m |
5m |
5m |
||
|
SMA (m) |
SMA (m) |
Reverse Polarity SMA |
||
|
Cables Fitted |
Cables Fitted |
Cables Fitted |
||
|
LG-IN2458-W-LC |
White |
2 x 2 MIMO |
1 Module |
4 x 4 MIMO |
|
5m |
5m |
5m |
||
|
SMA (m) |
SMA (m) |
Reverse Polarity SMA |
||
|
Cables Loose |
Cables Loose |
Cables Loose |
||
|
LG-IN2532 |
Black |
2 x 2 MIMO |
1 Module |
3 x 3 MIMO |
|
5m |
5m |
5m |
||
|
SMA (m) |
SMA (m) |
Reverse Polarity SMA |
||
|
Cables Fitted |
Cables Fitted |
Cables Fitted |
||
|
LG-IN2532-LC |
Black |
2 x 2 MIMO |
1 Module |
3 x 3 MIMO |
|
5m |
5m |
5m |
||
|
SMA (m) |
SMA (m) |
Reverse Polarity SMA |
||
|
Cables Loose |
Cables Loose |
Cables Loose |
||
|
LG-IN2532-W |
White |
2 x 2 MIMO |
1 Module |
3 x 3 MIMO |
|
5m |
5m |
5m |
||
|
SMA (m) |
SMA (m) |
Reverse Polarity SMA |
||
|
Cables Fitted |
Cables Fitted |
Cables Fitted |
||
|
LG-IN2532-W-LC |
White |
2 x 2 MIMO |
1 Module |
3 x 3 MIMO |
|
5m |
5m |
5m |
||
|
SMA (m) |
SMA (m) |
Reverse Polarity SMA |
||
|
Cables Loose |
Cables Loose |
Cables Loose |
||
|
LGMDM-6-60-24-58 |
White |
2 x 2 MIMO |
1 Module |
2 x 2 MIMO |
|
0.3m |
0.3m |
0.3m |
||
|
SMA (m) |
FME (f) |
SMA (f) |
||
|
LGMDMB-6-60-24-58 |
Black |
2 x 2 MIMO |
1 Module |
2 x 2 MIMO |
|
0.3m |
0.3m |
0.3m |
||
|
SMA (m) |
FME (f) |
SMA (f) |
||
|
LGMHM-6-60-24-58 |
White |
2 x 2 MIMO |
1 Module |
6 x 6 MIMO |
|
0.3m |
0.3m |
0.3m |
||
|
SMA (m) |
FME (f) |
SMA (f) |
||
|
LGMHMB-6-60-24-58 |
Black |
2 x 2 MIMO |
1 Module |
6 x 6 MIMO |
|
0.3m |
0.3m |
0.3m |
||
|
SMA (m) |
FME (f) |
SMA (f) |
||
|
LGMM-6-60 |
White |
2 x 2 MIMO |
1 Module |
No |
|
0.3m |
0.3m |
|||
|
SMA (m) |
FME (f) |
|||
|
LGMMB-6-60 |
Black |
2 x 2 MIMO |
1 Module |
No |
|
0.3m |
0.3m |
|||
|
SMA (m) |
FME (f) |
|||
|
LGMQM-6-60-24-58 |
White |
2 x 2 MIMO |
1 Module |
4 x 4 MIMO |
|
0.3m |
0.3m |
0.3m |
||
|
SMA (m) |
FME (f) |
SMA (f) |
||
|
LGMQMB-6-60-24-58 |
Black |
2 x 2 MIMO |
1 Module |
4 x 4 MIMO |
|
0.3m |
0.3m |
0.3m |
||
|
SMA (m) |
FME (f) |
SMA (f) |
||
|
LGMTM-6-60-24-58 |
White |
2 x 2 MIMO |
1 Module |
3 x 3 MIMO |
|
0.3m |
0.3m |
0.3m |
||
|
SMA (m) |
FME (f) |
SMA (f) |
||
|
LGMTMB-6-60-24-58 |
Black |
2 x 2 MIMO |
1 Module |
3 x 3 MIMO |
|
0.3m |
0.3m |
0.3m |
||
|
SMA (m) |
FME (f) |
SMA (f) |
||
|
LP-IN2455 |
Black |
2 x 2 MIMO |
No |
No |
|
5m |
||||
|
SMA (m) |
||||
|
Cables Fitted |
||||
|
LP-IN2455-LC |
Black |
2 x 2 MIMO |
No |
No |
|
5m |
||||
|
SMA (m) |
||||
|
Cables Loose |
||||
|
LP-IN2455-W |
White |
2 x 2 MIMO |
No |
No |
|
5m |
||||
|
SMA (m) |
||||
|
Cables Fitted |
||||
|
LP-IN2455-W-LC |
White |
2 x 2 MIMO |
No |
No |
|
5m |
||||
|
SMA (m) |
||||
|
Cables Loose |
||||
|
LPMDM-6-60-24-58 |
White |
2 x 2 MIMO |
No |
2 x 2 MIMO |
|
0.3m |
0.3m |
|||
|
SMA (m) |
SMA (f) |
|||
|
LPMDMB-6-60-24-58 |
Black |
2 x 2 MIMO |
No |
2 x 2 MIMO |
|
0.3m |
0.3m |
|||
|
SMA (m) |
SMA (f) |
|||
|
LPMM-6-60 |
White |
2 x 2 MIMO |
No |
No |
|
0.3m |
||||
|
SMA (m) |
||||
|
LPMMB-6-60 |
Black |
2 x 2 MIMO |
No |
No |
Pls see datasheet for order code options. Various cables lengths to suit.
