Brand: IEI Integration Corp.
Category: Single Board Computers

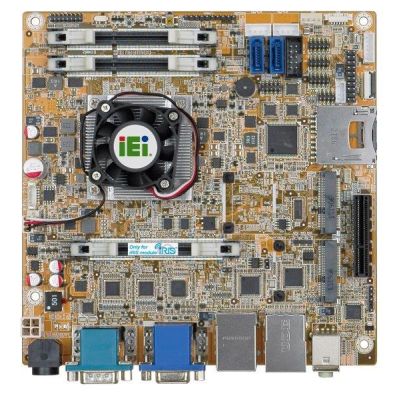

KINO-KBN-i2 Mini-ITX SBC with AMD Embedded G-Series SoC
In stock
SKU
KINO-KBN-i2-xxxx-R10
Mini-ITX SBC with AMD® Embedded G-Series SoC
End of Life
Enquire Now
Enquire Now
Mini-ITX SBC with AMD® Embedded G-Series SoC
· Mini-ITX form factor with AMD® Embedded G-Series SoC
· 12V only single voltage design for AT/ATX power
· Dual independent display by VGA, dual HDMI
· Supporting dual PCIe Mini card slot with mSATA, wireless card, DOM capabilities
· Support IPMI 2.0 through iRIS module
· IEI One Key Recovery solution allows you to create rapid OS backup and recovery
| Spec Item | Description |
|---|---|
| CPU Cooler | |
| CPU Cooler | GX-415GA (with hearsink) GX-210HA (with cooler) |
| Display | |
| Display | Dual display supported 1 x VGA 2 x HDMI |
| Environment | |
| Humidity | 5% ~ 95% non-condensing |
| Operating Temperature | 0°C ~ 60°C (32°F ~ 140°F) |
| Expansion Slots | |
| Expansion Slots | 1 x Half-size PCIe Mini card slot 1 x PCIe x4 slot |
| I/O Interface | |
| Audio | Realtek ALC892 HD Audio codec |
| Digital I/O | 8-bit Programmable I/O (8-bit GPIO is for programming I/O) |
| Ethernet | LAN1: Intel® I210-AT PCIe controller with NCSI support LAN2: Intel® I211-AT PCIe controller |
| I/O Interface | 1 x RS-422/485 4 x RS-232 2 x USB 3.0 4 x USB 2.0 1 x 6-pin wafer for PS/2 KB/MS |
| I/O Interface | |
| I/O Interface | 2 x USB 3.0 |
| 1 x RS-422/485 | |
| 4 x USB 2.0 | |
| 4 x RS-232 | |
| Option | |
| iRIS | 1 x iRIS-2400 slot |
| Power | |
| Power consumption | 12V@ 1.45A (AMD GX-415GA 1.5GHz CPU with 1333MHz 2GB DDR3 memory) |
| System | |
| Chipset | AMDR Embedded G-Series SoC |
| CPU | AMDR Embedded G-Series SoC |
| CPU Socket | On board |
| Memory Max. | Two 204-pin 1600/1333MHz dualchannel DDR3 & DDR3L SDRAM unbuffered DIMMs (system max. 8GB) |
| Storage | 2 x SATA 6Gb/s with SATA power connector 1 x mSATA (colay SATA port 2) 1 x SD card |
| Watchdog Timer | |
| Watchdog Timer | Software programmable and supports 1~255 sec. system reset |
