Brand: Transcend
M.2 SSD MTE652T
In stock
SKU
M.2 MTE652T

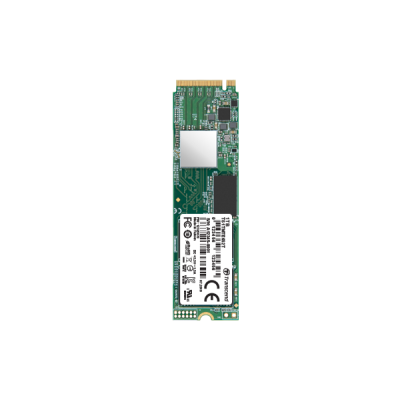

MTE652T – PCIe Gen 3 x4 M.2 SSD
Power Supply: 3.3V±5%
Fully compatible with devices and OS that support the PCIe Gen 3 standard
Compliant with M.2 standards
Enquire Now
Enquire Now
MTE652T – PCIe Gen 3 x4 M.2 SSD
· 3D TLC used
· PCIe Gen 3 interface, up to 4 lanes
· Compliant with PCI Express specification Rev. 3.1
· Compliant with NVM Express specification Rev. 1.3
· Supports NVM command
· SLC caching technology
· RAID engine
· LDPC ECC algorithm
· Feature a DDR3 DRAM cache
· Dynamic thermal throttling
· Supports Transcend SSD Scope Pro
· RoHS compliant
| Dimensions | 80 mm x 22 mm x 3.58 mm (3.15" x 0.87" x 0.14") |
|---|---|
| Weight | 9 g (0.32 oz) |
| Form Factor |
|
| M.2 Type |
|
Interface |
|
| Bus Interface |
|
Storage |
|
| Flash Type |
|
| Capacity |
|
Operating Environment |
|
| Operating Voltage |
|
| Operating Temperature |
|
| Storage Temperature | -40°C (-40°F) ~ 85°C (185°F) |
| Humidity | 5% ~ 95% |
| Shock |
|
| Vibration (Operating) | 3 G (peak-to-peak), 5 Hz ~ 800 Hz (frequency) |
| Vibration (Non-operating) | 5 G (peak-to-peak), 5 Hz ~ 800 Hz (frequency) |
Power |
|
| Power Consumption (Operation) | 3.5 watt(s) |
| Power Consumption (Sleep) | 0.6 watt(s) |
Performance |
|
| Sequential Read/Write (ATTO, max.) | Read: 1700 MB/s Write: 1600 MB/s |
| Sequential Read/Write (CrystalDiskMark, max.) | Read: 1700 MB/s Write: 1600 MB/s |
| 4K Random Read/Write (IOmeter, max.) | Read: 165,000 IOPS Write: 125,000 IOPS |
| Mean Time Between Failures (MTBF) | 2,000,000 hour(s) |
| Terabytes Written (Max.) | 2,160 TB |
| Drive Writes Per Day (DWPD) | 2 (3 yrs) |
| Note |
|
Warranty |
|
| Certificate |
|
| Warranty |
|
