Brand: IEI Integration Corp.
MODAT-532
In stock
SKU
MODAT-532

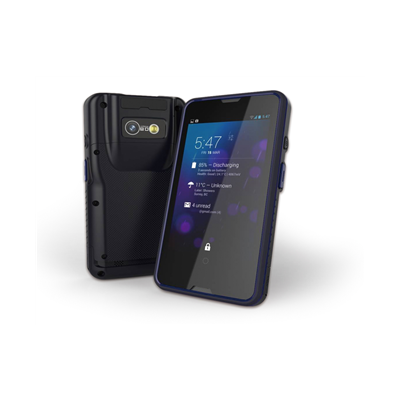

Mobile Data Collector
Enquire Now
Enquire Now
Mobile Data Collector
● Stylish rugged design and ultra-light industrial Android mobile device
● Octa-Core Cortex A53 64bit 1.7 GHz Processor
● 5.3” display PDA
● Optional:
· GSM 850/900/1800/1900
· WCDMA 2100/1900/850/900
· 4G LTE
· FDD (Band 1,2,3,7,8,20)
· TDD (Band 38,39,40,41)
● Micro USB port and microSD card slot (max. 32 GB) for maximum connectivity
● Android 5.0 OS
● 1D/2D imager scan engine
● NFC (device to device communication, card reader)
| Spec Item | Description |
|---|---|
| Communication | |
| Bluetooth | 4.0 LE |
| GPS | GPS / Glonass |
| modem | GSM ( 800, 900, 1800, 1900) WCDMA (2100, 1900, 850, 900) 4G FDD(Band1,2,3,7,8,20), TDD(38,39,40,41) |
| Wi-Fi | 802.11a/b/g/n |
| Display | |
| Brightness(cd/m2) | 350 |
| LCD Size | 5.3” |
| Max Resolution | 540(H) x 960(V) |
| Touch Screen | 5-point capacitive |
| Viewing Angle | 80/80/80/80 Deg. |
| Environment | |
| Humidity | 10% ~ 95%, non condensing |
| Operating Temperature | -10°C ~ 50°C |
| I/O Interface | |
| I/O Interface | 1 x WIFI(802.11a/b/g/n) |
| 1 x USB 2.0(Micro USB) | |
| 1 x Mic | |
| 1 x Speaker(0.5W) | |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 160.9 mm x 85.4 mm x 28.85 mm |
| Power | |
| Battery | 3900 mAh |
| Power adapter | 5V/3A |
| System | |
| CPU | Octa-Core Cortex A53 64bit 1.7 GHz |
| On-board Memory | 16GB eMMC 2G LPDDR2 |
| Weight | |
| Weight | 386 g |
