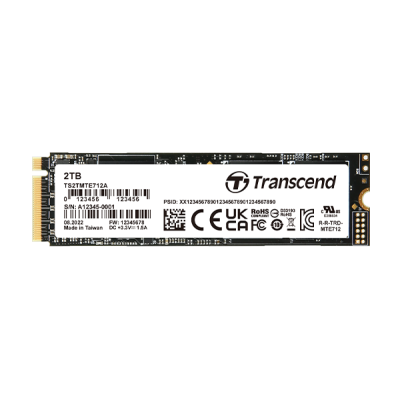

MTE712A & MTE712A-I M.2 SSD
Features the 112-layer 3D NAND flash and the PCI Express (PCIe) Gen 4 x4 interface
Transcend's M.2 SSD MTE712A is a self-encrypting drive (SED) that meets TCG Opal 2.0 specifications. AES 256-bit hardware encryption and LBA (Logical Block Address) sector-specific permissions are used to protect data.
The MTE712A achieves previously unheard-of transfer speeds thanks to its 112-layer 3D NAND flash and PCI Express (PCIe) Gen 4 x4 interface. Faster random speeds are made possible by its integrated DRAM cache, and its reliability in challenging environments is ensured by its 30" gold finger PCB, Corner Bond technology, and anti-sulphur resistor. The MTE712A has undergone extensive testing in-house and has proven to be reliable over a wide operating temperature range of -20°C to 75°C.
For mission-critical applications, Transcend also provides the MTE712A-I with wide temperature capabilities (-40°C to 85°C). This guarantees continued functionality, increased endurance, and ideal reliability.
Key Features:
- Compliant with PCI Express specification 4.0
- Compliant with NVM Express specification 1.4
- PCIe Gen 4 x4 interface Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- Dynamic thermal throttling
- Built-in LDPC ECC (Error Correction Code) functionality
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- Full drive encryption with Advanced Encryption Standard (AES)
- Compliant with TCG Opal specifications and IEEE 1667 standards
Appearance |
|
| Dimensions | 80 mm x 22 mm x 3.58 mm (3.15" x 0.87" x 0.14") |
|---|---|
| Weight | 10 g (0.35 oz) |
| M.2 Type |
|
| Form Factor |
|
Interface |
|
| Bus Interface |
|
Storage |
|
| Capacity |
|
| Flash Type |
|
Operating Environment |
|
| Operating Voltage |
|
| Operating Temperature |
|
| Storage Temperature | -55°C (-67°F) ~ 85°C (185°F) |
| Humidity | 5% ~ 95% |
| Shock |
|
| Vibration (Operating) | 20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency) |
Power |
|
| Power Consumption (Operation) | 5.6 watt(s) |
| Power Consumption (IDLE) | 1.28 watt(s) |
Performance |
|
| Sequential Read/Write (CrystalDiskMark) | Read: up to 3,800 MB/s Write: up to 3,200 MB/s |
| 4K Random Read/Write (IOmeter) | Read: up to 350,000 IOPS Write: up to 330,000 IOPS |
| Mean Time Between Failures (MTBF) | 3,000,000 hour(s) |
| Terabytes Written (TBW) | up to 4,000 TBW |
| Drive Writes Per Day (DWPD) | 1.84 (3 yrs) |
| Note |
|
You have to |
256GB |
TS256GMTE712AI-VS1 | 256GB, M.2 2280, PCIe Gen4x4, NVMe, 3D TLC BiCS5, PE: 3K, wide temp., TCG OPAL, eDrive |
| 512GB | TS512GMTE712AI-VS1 | 512GB, M.2 2280, PCIe Gen4x4, NVMe, 3D TLC BiCS5, PE: 3K, wide temp., TCG OPAL, eDrive |
| 1TB | TS1TMTE712AI-VS1 | 1TB, M.2 2280, PCIe Gen4x4, NVMe, 3D TLC BiCS5, PE: 3K, wide temp., TCG OPAL, eDrive |
| 2TB | TS2TMTE712AI-VS1 | 2TB, M.2 2280, PCIe Gen4x4, NVMe, 3D TLC BiCS5, PE: 3K, wide temp., TCG OPAL, eDrive |
| 256GB | TS256GMTE712A-VS1 | 256GB, M.2 2280, PCIe Gen4x4, NVMe, 3D TLC BiCS5, PE: 3K, extended temp, TCG OPAL, eDrive |
| 512GB | TS512GMTE712A-VS1 | 512GB, M.2 2280, PCIe Gen4x4, NVMe, 3D TLC BiCS5, PE: 3K, extended temp, TCG OPAL, eDrive |
| 1TB | TS1TMTE712A-VS1 | 1TB, M.2 2280, PCIe Gen4x4, NVMe, 3D TLC BiCS5, PE: 3K, extended temp, TCG OPAL, eDrive |
| 2TB | TS2TMTE712A-VS1 | 2TB, M.2 2280, PCIe Gen4x4, NVMe, 3D TLC BiCS5, PE: 3K, extended temp, TCG OPAL, eDrive |
