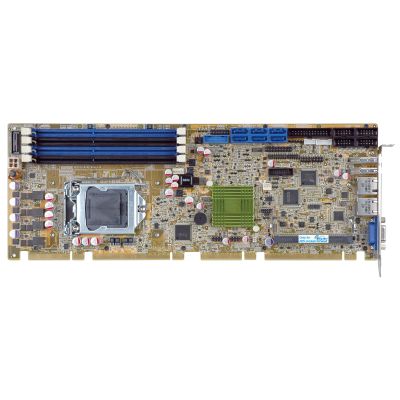

PCIE-Q870-i2 Full-size PICMG i7/i5/i3/Pentium/Celeron
Full-size PICMG 1.3 CPU card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® Q87
Full-size PICMG 1.3 CPU card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® Q87
· PICMG 1.3 full-size graphic grade solution
· LGA 1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported
· Four 240-pin 1600/1333 MHz dual-channel DDR3 DIMMs support up to 32 GB memory
· Supports dual independent display by VGA & iDP interfaces
· Supports PCIe Mini devices and mSATA via PCIe Mini socket
· Intel® PCIe GbE with Intel® AMT 9.0 support
· Supports RAID function via SATA 6Gb/s
· TPM v1.2 hardware security function supported by TPM module
· Stiffener bars
· IEI jumper-less function
· Supports IPMI 2.0 via iRIS-2400 module
| Spec Item | Description |
|---|---|
| CPU Cooler | |
| CPU Cooler | CF-1150SB-R11 CF-1150SC-R10 CF-1150SD-R10 |
| Environment | |
| Humidity | 5% ~ 95% non-condensing |
| Operating Temperature | -20°C ~ 60°C |
| Expansion Slots | |
| Expansion Slots | PCIe Mini slot |
| I/O Interface | |
| Audio | Supports by IEI AC-KIT-892HD audio kit |
| Digital I/O | 8-bit Digital I/O (4-bit input/4-bit output) |
| Display | Dual display supported VGA (up to 1920x1200 @ 60 Hz) iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160 @60 Hz) |
| Ethernet | LAN1: Intel® I217LM with Intel® AMT 9.0 support LAN2: Intel® I210-AT PCIe controller with NCSI support |
| I/O Interface | |
| I/O Interface | 1 x LPT |
| 2 x Internal USB 3.0 | |
| 4 x Internal USB 2.0 | |
| 1 x Internal RS-422/485 | |
| 4 x Internal RS-232 | |
| 2 x USB 3.0 | |
| Option | |
| iRIS | 1 x iRIS-2400 slot |
| Power | |
| Power consumption | 5V@3.55A, 12V@0.37A, Vcore_12V@7.61A, 3.3V@1.55A, 5VSB@0.13A (Intel® Core™ i7-4770K 3.90 GHz CPU with 16GB (4x4GB) 1333MHz DDR3 memory) |
| Storage | |
| Storage | 1 x mSATA (colay SATA port 6) (support SATA 6GB/s signal only) 6 x SATA 6GB/s (RAID 0, 1, 5, 10 supported) |
| System | |
| Chipset | Intel® Q87 |
| CPU | Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported |
| CPU Socket | LGA1150 |
| Memory Max. | Four 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs support up to 32GB |
| Watchdog Timer | |
| Watchdog Timer | Software programmable and supports 1~255 sec. system reset |
