Brand: Transcend

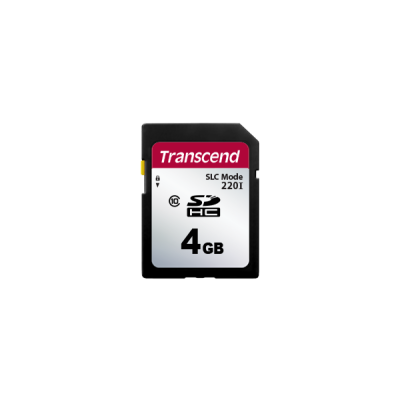

SD/SDHC220I SD Cards
In stock
SKU
TSxxxxSDC220I
SDC220I SD Cards combine the advantages of high performance and exceptional endurance at an affordable price.
Enquire Now
Enquire Now
Transcend's SLC Mode technology is a low-cost solution that performs similarly to SLC NAND flash. SDC220I SD Cards offer high performance and exceptional endurance at an affordable price. Because of their wide temperature range (-40°C to 85°C) and high compatibility, they are ideal for demanding industrial applications such as POS terminals, medical devices, and portable devices with an SD memory card slot.
Key Features:
- Built-in ECC (Error Correction Code) functionality
- Early Move
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- Wear-Leveling
- Compliant with RoHS 2.0 standards
- Electrostatic protection (ESD IEC 61000-4-2)
- Compliant with SD specification 3.01
- High-quality MLC NAND flash and SLC mode (also called SuperMLC) for exceptional endurance and reliability
- Promised operational reliability in a wide temperature range (from -40°C to 85°C)
- Supports Transcend Scope Pro software
*Scope Pro is only available when used with the RDF5 card reader.
*TS2GSDC220I is compliant with SD specification 2.0.
Appearance |
|
| Dimensions | 24 mm x 32 mm x 2.1 mm (0.94" x 1.26" x 0.08") |
|---|---|
| Form Factor |
|
Storage |
|
| Flash Type |
|
| Capacity |
|
Operating Environment |
|
| Operating Voltage |
|
| Drop Test |
|
| Operating Temperature |
|
| Storage Temperature | -40°C (-40°F) ~ 85°C (185°F) |
| Humidity | 0% ~ 95% |
| Shock |
|
| Vibration (Operating) | 20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency) |
Power |
|
| Power Consumption (Max.) | 0.72 watt(s) |
Performance |
|
| Read Speed (Max.) | up to 22 MB/s |
| Write Speed (Max.) | up to 20 MB/s |
| Terabytes Written (TBW) | up to 66 TBW |
| Note |
|
