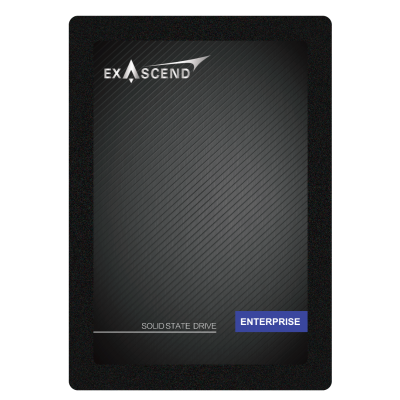

SE4 2.5" Enterprise SSD with SATA-III Interface up to 15.36TB
SATA-III, 6.0Gb/s 2.5" SSD Drives 480GB to 15.36TB
Key Features:
- State-of-the-art 176-layer NAND flash
- High I/O and throughput performance
- Consistent I/O latency and high QoS
- Optional hardware power loss protection
The SE4 series is an advanced SATA-III product line engineered with 176-layer 3D NAND storage technology innovation. In a wide variety of configurations, the SE4 can satisfy any enterprise application’s storage demands.
130/755 μs read/write latency and 97,000/50,000 random 4K read/write IOPS enable Exascend enterprise SATA SSDs to deliver uncompromising quality of service (QoS) and seamless, uninterrupted data operations under the most intensive workloads
|
Product line |
SE4 Series |
||
|
Interface |
SATA-III, 6.0Gbps |
||
|
Edition |
Streaming |
Pro |
Max |
|
Flash type |
3D TLC |
3D TLC |
pSLC (3D TLC) |
|
Form factor |
M.2 (2280, 2242), 2.5″, mSATA |
M.2 (2280), 2.5″ |
M.2 (2280), 2.5″ |
|
Capacity |
M.2: 240GB to 7.68TB 2.5”: 240GB to 15.36TB mSATA: 120GB to 960GB |
M.2: 240GB to 3.84TB 2.5”: 240GB to 7.68TB |
M.2: 240GB to 1.92TB 2.5”: 240GB to 3.84TB |
|
Input voltage |
M.2: 3.3V ±5% 2.5″: 5V ±5% mSATA: 3.3V ±5% |
||
|
Power consumption |
Active <4.0W; Idle <1W |
||
|
Sequential read/write up to |
560/535 MB/s |
||
|
4K random read/write up to |
97,000/18,000 IOPS |
95,000/46,000 IOPS |
97,000/50,000 IOPS |
|
Latency read/write (QD1) |
130µs/755µs |
||
|
Operational temperature |
0 to 70°C |
||
|
Storage temperature |
-40°C to 85°C |
||
|
Features |
TCG Opal 2.01. AES-256. Advanced LDPC error correction. Power loss protection. |
||
|
TBW (JESD219 enterprise) up to |
16,640 TB |
13,760 TB |
35,200 TB |
|
DWPD (JESD219 enterprise) |
0.6 for 5 years |
1 for 5 years |
5 for 5 years |
|
MTBF |
2,000,000 hours |
||
|
Warranty |
5 years |
||
| Model Name | Form factor | Flash type | Capacity (GB) | Max. seq. read (MB/s) | Max. seq. write (MB/s) | DWPD (JESD219 enterprise workload) |
|---|---|---|---|---|---|---|
| EXSE4A960GB-0P | 2.5" | 3D TLC | 960 | 545 | 520 | 1 |
| EXSE4A960GB | 2.5" | 3D TLC | 960 | 545 | 520 | 0.6 |
| EXSE4A960GB-0X | 2.5" | pSLC | 960 | 555 | 535 | 5 |
| EXSE4A7680GB-0P | 2.5" | 3D TLC | 7680 | 550 | 525 | 1 |
| EXSE4A7680GB | 2.5" | 3D TLC | 7680 | 550 | 530 | 0.6 |
| EXSE4A480GB-0P | 2.5" | 3D TLC | 480 | 545 | 520 | 1 |
| EXSE4A480GB | 2.5" | 3D TLC | 480 | 545 | 515 | 0.6 |
| EXSE4A480GB-0X | 2.5" | pSLC | 480 | 550 | 520 | 5 |
| EXSE4A3840GB-0P | 2.5" | 3D TLC | 3840 | 545 | 525 | 1 |
| EXSE4A3840GB | 2.5" | 3D TLC | 3840 | 545 | 520 | 0.6 |
| EXSE4A3840GB-0X | 2.5" | pSLC | 3840 | 545 | 535 | 5 |
| EXSE4A240GB-0P | 2.5" | 3D TLC | 240 | 550 | 505 | 1 |
| EXSE4A240GB | 2.5" | 3D TLC | 240 | 545 | 415 | 0.6 |
| EXSE4A240GB-0X | 2.5" | pSLC | 240 | 560 | 535 | 5 |
| EXSE4A1920GB-0P | 2.5" | 3D TLC | 1920 | 545 | 520 | 1 |
| EXSE4A1920GB | 2.5" | 3D TLC | 1920 | 545 | 520 | 0.6 |
| EXSE4A1920GB-0X | 2.5" | pSLC | 1920 | 560 | 535 | 5 |
| EXSE4A0153TB | 2.5" | 3D TLC | 15360 | 555 | 450 | 0.6 |
