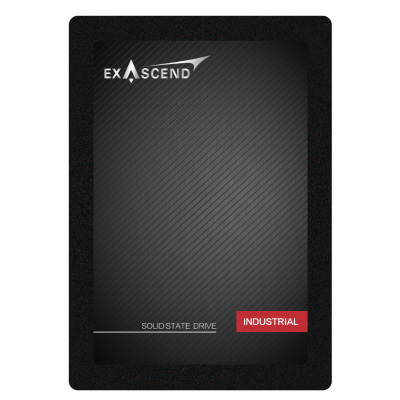

SV4 2.5" Industrial SSD with SATA-III Interface up to 4TB
SATA-III, 6.0Gb/s 2.5" SSD Drives 480GB to 3.84TB
Key Features:
- State-of-the-art 112-layer NAND flash technology
- High capacities up to 3.84TB in 2.5-inch form factor
- Rugged design for industrial environments, withstanding temperatures from -40°C to 85°C
- Extended drive lifespan through Exascend’s advanced flash management
- Extensive customization options, including optional power loss protection (PLP)
- TCG Opal 2.0 compliant with AES-256 encryption support; hardware secure erase
- Enhanced power efficiency ensuring optimal performance
The SV4 series features 112-layer 3D TLC NAND technology designed for industrial applications. Available in form factors including M.2 2280 and 2.5-inch, and storage capacities ranging from 480GB to 3.84TB, the SV4 series is engineered to meet the rigorous demands of industrial environments.
Powered by Exascend's cutting-edge technologies, our SSDs consume less than 4W of power while delivering maximum performance, ensuring energy conservation without compromising on speed.
|
Edition |
SV4 Series |
|
|
Interface |
SATA-III, 6.0Gbps |
|
|
Flash type |
112-layer 3D TLC |
|
|
Form factor |
2.5 inch (7mm) |
M.2 (2280) |
|
Capacity |
480GB to 3.84TB |
480GB to 1.92TB |
|
Input voltage |
5V ±10% |
3.3V ±5% |
|
Power consumption |
Active <4W (avg.); Idle <0.5W |
|
|
Sequential read/write up to |
550/530 MB/s |
|
|
4K random read/write up to |
96,000/12,000 IOPS |
96,000/10,000 IOPS |
|
Operational temperature |
-40°C to 85°C |
|
|
Storage temperature |
-50°C to 95°C |
|
|
Humidity (non-condensing) |
5–95% (Operating) |
|
|
Vibration |
10 G (peak, 10–2000 Hz) |
|
|
Shock |
Operating: 50 G (11 ms duration, half sine wave) Non-operating: 1500 G (0.5 ms duration, half sine wave) |
|
|
Features |
Advanced LDPC error correction. Firmware & hardware power loss protection. TCG Opal 2.0, AES-256. (optional) |
Advanced LDPC error correction. Firmware power loss protection. TCG Opal 2.0, AES-256. (optional) |
|
TBW (JESD219 enterprise) up to |
2,400 TB |
1,200 TB |
|
DWPD (JESD219 enterprise) |
0.6 @ 3 years |
|
|
MTBF |
2,000,000 hours |
|
|
Warranty |
3 years |
|
| Image | Model Name | Form factor | Capacity (GB) | Max. seq. read (MB/s) | Max. seq. write (MB/s) | TBW (max.) |
|---|---|---|---|---|---|---|
 |
EXSV4A480GB | 2.5" | 480 | 550 | 530 | 300 |
|
|
EXSV4A960GB | 2.5" | 960 | 550 | 530 | 600 |
|
|
EXSV4A1920GB | 2.5" | 1920 | 550 | 530 | 1200 |
|
|
EXSV4A3840GB | 2.5" | 3840 | 550 | 530 | 2400 |
