Brand: Nexcom

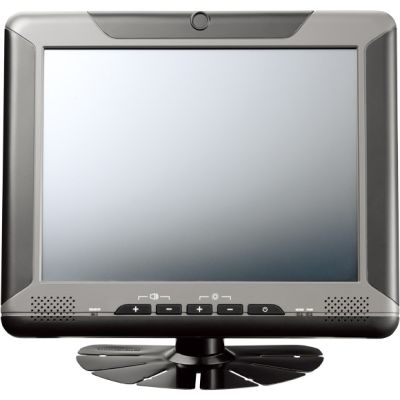

VMD2000 - 8" Vehicle Display with Touch Screen and LVDS Interface
In stock
SKU
VMD2000
8" SVGA Vehicle Mount Display with Touch Screen and LVDS Interface
Enquire Now
Enquire Now
8" SVGA Vehicle Mount Display with Touch Screen and LVDS Interface
· 8" SVGA TFT LCD monitor
· Automatic/ Manual brightness control
· Remote system power control
· On screen control buttons
· Support USB 2.0 and card reader
· Sunlight readable solution with 800cd/m2 high brightness support
· Front panel compliant with IP54
| General | Enclosure: Plastic PC + ABSMounting: Support VESA 75, panel and wall mountingPower Input: 12VDCPower Consumption: 15WIngress Protection: Front panel IP54Dimension: 207mm (W) x 173mm (H) x 36.7mm (D) (8.15" x 6.81" x 1.44")Weight (Net): 0.7Kg, 1.54Lb |
| LCD Panel | 8-inch TFT LCD panel with LED backlight800 x 600 pixels (SVGA)Brightness: 500 cd/m² (typical)Optional high brightness for sunlight-readable with 800cd/m2 After touch screen is 640cd/m2Contrast ratio: 500:1 (typical) |
| Touch Screen Sensor | 4-wire resistant touchAnti-glare coating surfaceTransmission rate: 82 ± 3% |
| I/O Interface-Front | On screen display buttons x 5 Power on/off Brightness control (+/-) Volume control (+/-)Light sensor2 x LED indicators2 x Built-in speakers (1.2W) |
| I/O Interface-Lateral | 1 x SD/ MMC/ MS card reader1 x USB type A Host1 x Line-out (automatic detection/ switch to external speaker)1 x Mic-in |
| I/O Interface-Bottom | Remote System Power On/ Off Button1 x Mic-out1 x Line-in1 x LVDS Connector (integrating LVDS, USB x 1 and 12Vdc x 1) |
| Optional Features | Sunlight-Readable Display with High Brightness LCD (800 cd/m2)Support Panel and wall mount kit |
| Environment | Operating temperature: -20°C to 60°CStorage temperature: -30°C to 70°CVibration (random): 2.5g@5~500 HzVibration Operating: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle – Highway Truck Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity TestShock Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers= 20g Crash hazard: MIL-STD-810F, Method 516.5, Procedure V, Ground equipment= 75g |
| Standards/ Certifications | CE approvalFCC Class B |
